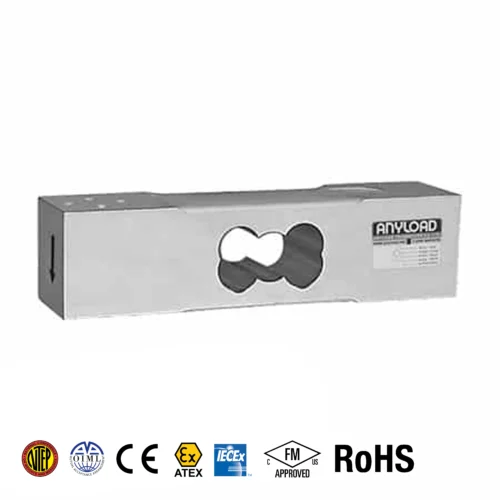

108EA Single Point Load Cell
The Anyload 108EA is an aluminum single-point load cell for mid-capacity platform applications, available from 30 to 300 kg with OIML MAA C7.5/C6 and NTEP Class III certification,
IP66 water resistance, and 450×450 mm or 17.72 x 17.72 inches platform support. Popular for postal, retail checkout, medical, and airport baggage scales, it offers reliable off-center load compensation at a competitive price.
PRODUCT DETAILS
The 108EA is a dependable mid-range aluminum single-point load cell suited to the wide variety of platform weighing applications that fall in the 30 to 300 kg capacity window. With a 450×450 mm or 17.72 x 17.72 inches platform size, it serves the broad mid-tier. Its OIML MAA C7.5 (30 kg) and MAA C6 (60–300 kg) plus NTEP 1:5000 Class III certifications qualify it for legal-for-trade commercial use, while its superior off-center load compensation delivers accurate results even when load placement varies — a critical feature in busy retail checkout, postal sorting, and airport baggage environments. With IP66 environmental protection and a proven aluminum construction, the 108EA offers a robust and economical weighing solution for both OEM manufacturers and scale service providers. ATEX, FM, and IECEx versions are available.
Most Common Applications: Postal and courier scales, retail checkout scales, airport baggage scales, medical scales, OEM platform scale manufacturing.
- Mid-Capacity Range (30 to 300 kg, up to 450×450 mm): Covers the mid-range single-point weighing sweet spot for postal, retail, airport, and medical scale applications.
- OIML MAA C7.5/C6 & NTEP Class III Certified: Legal-for-trade approved for certified commercial and industrial weighing across international and North American markets.
- IP66 Protection: Sealed against dust and high-pressure water jets for consistent performance in commercial settings with routine washdown or cleaning operations.
- Excellent Off-Center Load Compensation: Moment-compensated design accurately measures load regardless of position on the platform — essential for retail checkout and postal applications where loads are rarely perfectly centered.
- ATEX, FM & IECEx Certified: .
- Cost-Effective Aluminum Construction: Lightweight anodized aluminum provides an excellent balance of durability, accuracy, and affordability across high-volume OEM and commercial applications.
ATEX certified for a single load cell to II 1 G Ex ia IIC T6 Ga; -40°C < Ta < +60°C & II 1 D Ex ia IIIC T83°C Da; -40°C < Ta < +60°C. For multiple load cells to II 1 G Ex ia IIC T4 Ga; -40°C < Ta < +60°C FM certified for a single load cell to Class I, II and III, Division 1, Groups A, B, C, D, E, F and G; T6; -40°C < Ta < +60°C. For multiple load cells to Class I, Division 1, Groups A, B, C and D; T4; -40°C < Ta < +60°C IECEx certified for a single load cell to Ex ia IIC T4 Ga.
| Capacities | 30 kg (66.14 lb), 60 kg (132.28 lb), 100 kg (220.46 lb), 150 kg (330.69 lb), 200 kg (440.92 lb), 300 kg (661.39 lb) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.017% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ±10% |
| Maximum Excitation | 15 V DC |
| Bridge Resistance | 350 Ω ±3 |
| Operating Temperature | −18°C to +65°C (−0.4°F to +149°F) |
| Compensated Temperature | −10°C to +40°C (14°F to +104°F) |
| Sealing Standard | IP66 |
| Material | Aluminum |
| Protective Coating | Clear Anodized |
