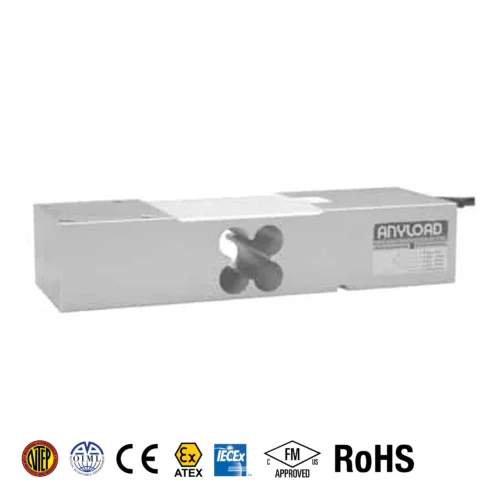

108HA / 108HAUN Single Point Load Cell
The Anyload 108HAUN is an aluminum single-point load cell available in capacities from 50 kg to 1,000 kg/1t, with OIML MAA C6/C4 and NTEP Class III certification and
IP66 protection for reliable off-center load performance in mid-to-high capacity commercial applications with a 550×600 mm or 21.65 x 23.62 inches platform. It features UNC imperial threading for North American installations.
PRODUCT DETAILS
The 108HAUN is a robust mid-to-high capacity aluminum single-point load cell offering NTEP 1:5000 (50 to 250 kg) Class III and NTEP 1:4000 (635 kg to 1,000 kg / 1t) Class III and OIML MAA C6/C4 legal-for-trade accuracy in capacities from 50 kg up to 1,000 kg, with a 550×600 mm or 21.65 x 23.62 inches platform reference. The UNC imperial thread version makes it uniquely adaptable for scale manufacturers and integrators working to North American standards. With a 2.0 mV/V output, IP66 sealing, and 150% safe overload rating, the 108HAUN provides dependable, accurate service in demanding industrial floor scale, bench scale, and conveyor scale applications where off-center loading is a regular occurrence. ATEX, FM, and IECEx versions are available for hazardous environments.
Most Common Applications: Industrial floor scales, heavy-duty bench scales, conveyor scales, platform scales, OEM mid-to-high capacity scale manufacturing.
- 50 kg to 1,000 kg/1t capacity range (550×600 mm or 21.65 x 23.62 inches platform): Covers a wide mid-to-high capacity window ideal for floor scales, industrial platform scales, conveyor scales, and heavy-duty OEM weighing systems.
- UNC Imperial Threading (108HAUN): UNC thread version simplifies integration into North American-standard scale structures, a flexible choice for global OEM applications.
- OIML MAA C6/C4 & NTEP Class III Certified: NTEP 1:5000 Class III for 50 to 250 kg and NTEP 1:4000 Class III for 635 kg to 1,000 kg; OIML MAA C6 for 50 to 250 kg and OIML MAA C4 for 635 kg to 1,000 kg.
- ATEX, FM & IECEx Certified: .
- IP66 Environmental Sealing: Dust-tight and high-pressure water-jet resistant, suitable for busy industrial and commercial environments with regular cleaning routines.
- Superior Off-Center Load Compensation: Moment-compensated design delivers accurate weight readings regardless of where the load is placed on the platform, critical for floor scale and conveyor scale applications.
ATEX certified for a single load cell to II 1 G Ex ia IIC T6 Ga; -40°C < Ta < +60°C & II 1 D Ex ia IIIC T83°C Da; -40°C < Ta < +60°C. For multiple load cells to II 1 G Ex ia IIC T4 Ga; -40°C < Ta < +60°C FM certified for a single load cell to Class I, II and III, Division 1, Groups A, B, C, D, E, F and G; T6; -40°C < Ta < +60°C. For multiple load cells to Class I, Division 1, Groups A, B, C and D; T4; -40°C < Ta < +60°C IECEx certified for a single load cell to Ex ia IIC T4 Ga.
| Capacities | 50 kg (110.23 lb), 100 kg (220.46 lb), 250 kg (551.16 lb), 635 kg (1,399.91 lb), 1,000 kg (2,204.62 lb) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.017% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ±0.25% |
| Maximum Excitation | 15 V DC |
| Bridge Resistance | 350 Ω ±3 |
| Operating Temperature | −18°C to +65°C (−0.4°F to +149°F) |
| Compensated Temperature | −10°C to +40°C (14°F to +104°F) |
| Sealing Standard | IP66 |
| Material | Aluminum |
| Protective Coating | Clear Anodized |
