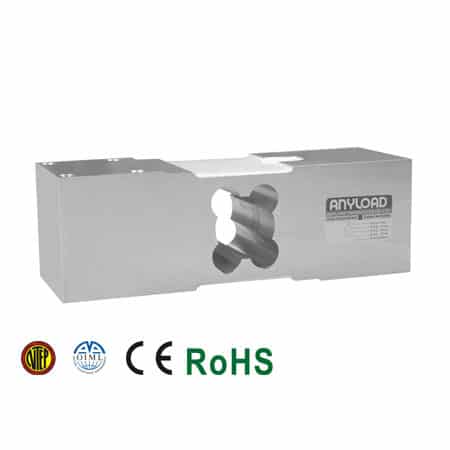

108MA / 108MAUN Single Point Load Cell
The Anyload 108MA / 108MAUN is a practical aluminum single-point load cell available from 50 to 1000 kg, with OIML MAA C6/C4 and NTEP Class III certification and IP66 protection,
offering excellent performance against corner error & side loading and easy installation. The 108MA uses metric threads while the 108MAUN features UNC imperial threads.
PRODUCT DETAILS
The 108MA/108MAUN is a practical, cost-effective mid-to-high-capacity aluminum single-point load cell that prioritizes ease of installation and reliable off-center load compensation. Spanning 50 to 1,000 kg, it serves a wide range of commercial and light industrial weighing needs, from retail platform scales to process supervision systems and packaging devices. OIML MAA C6 (50 to 500 kg) and OIML MAA C4 (63 to 660 kg), plus NTEP 1:5000 (50 to 500 kg) Class III and NTEP 1:4000 (635 to 660 kg) Class III certifications, ensure legal-for-trade compliance across the full capacity range with 610 x 700 mm or 24 x 27.56 inches platform. Its direct interchangeability with equivalent models from leading manufacturers makes it a practical drop-in replacement for scale service technicians and OEM manufacturers alike, reducing sourcing complexity and downtime during system maintenance or upgrades.
Most Common Applications: Platform and floor scales, retail trade scales, counting scales, process supervision and packaging systems, OEM scale manufacturing.
- 50 to 1,000 kg Capacity Range (with 610 x 700 mm or 24 x 27.56 inches platform) : Broadly covers mid-to-high capacity single-point weighing needs for platform scales, floor scales, process weighing, and packaging systems.
- Metric (108MA) & Imperial UNC (108MAUN) Threading: Two thread variants serve both global metric-standard and North American imperial-standard scale and OEM manufacturing environments.
- OIML MAA C6/C4 & NTEP Certified: NTEP 1:5000 (50 to 500 kg) Class III and NTEP 1:4000 (635 to 660 kg) Class III; OIML MAA C6 (50 to 500 kg) and OIML MAA C4 (635 to 660 kg) for full legal-for-trade coverage.
- ATEX, FM & IECEx Certified: .
- Simple Installation & Superior Side-Load Resistance: Straightforward mounting design with excellent performance against corner errors and side loading, minimizing installation complexity and service time.
ATEX certified for a single load cell to II 1 G Ex ia IIC T6 Ga; -40°C < Ta < +60°C & II 1 D Ex ia IIIC T83°C Da; -40°C < Ta < +60°C. For multiple load cells to II 1 G Ex ia IIC T4 Ga; -40°C < Ta < +60°C FM certified for a single load cell to Class I, II and III, Division 1, Groups A, B, C, D, E, F and G; T6; -40°C < Ta < +60°C. For multiple load cells to Class I, Division 1, Groups A, B, C and D; T4; -40°C < Ta < +60°C IECEx certified for a single load cell to Ex ia IIC T4 Ga.
| Capacities | 50 kg (110.23 lb), 75 kg (165.35 lb), 100 kg (220.46 lb), 150 kg (330.69 lb), 200 kg (440.92 lb), 250 kg (551.16 lb), 300 kg (661.39 lb), 500 kg (1,102.31 lb), 635 kg (1,399.91 lb), 660 kg (1,455.05 lb), 1,000 kg (2,204.62 lb) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.017% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ±10% |
| Maximum Excitation | 15 V DC |
| Bridge Resistance | 350 Ω ±3 |
| Operating Temperature | −18°C to +65°C (−0.4°F to +149°F) |
| Compensated Temperature | −10°C to +40°C (14°F to +104°F) |
| Sealing Standard | IP66 |
| Material | Aluminum |
| Protective Coating | Clear Anodized |
Download our datasheets, drawings and documents.
