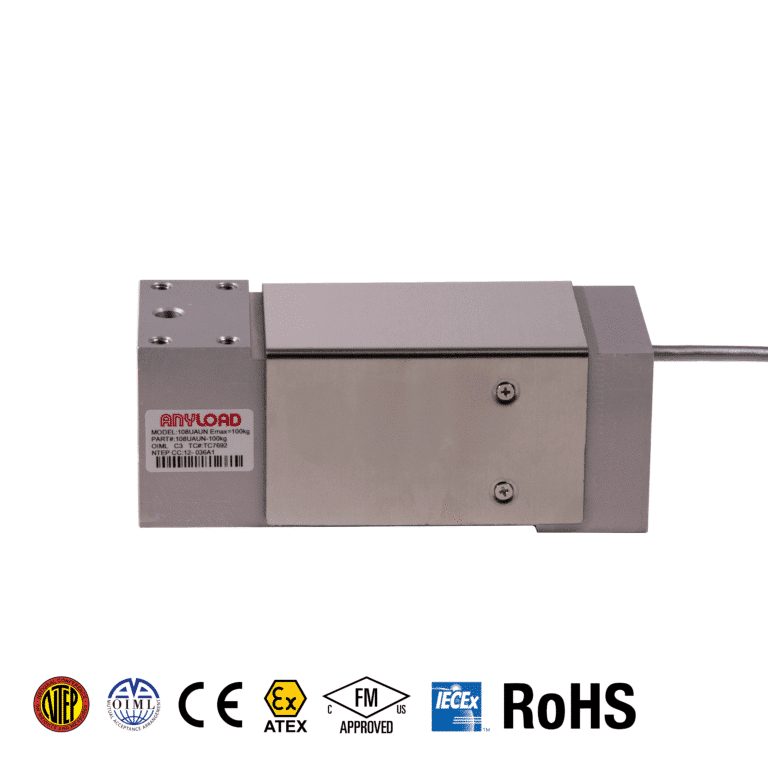

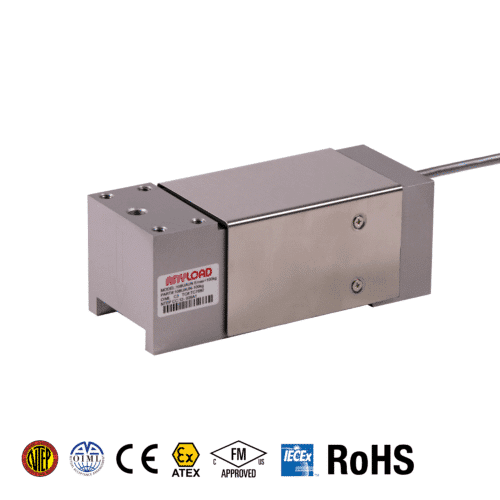

108UA / 108UAUN Single Point Load Cell
The Anyload 108UA / 108UAUN is a versatile OIML and NTEP certified aluminum single-point load cell. The 108UA covers 50 to 1,000 kg (metric threads) and the 108UAUN covers 30 to 1,500 kg (UNC imperial threads),
both with IP66 protection and compensation for side loading and off-center loads in static and dynamic weighing applications up to 750×750 mm or 29.53 x 29.53 inches platform.
PRODUCT DETAILS
The 108UA/108UAUN is a highly versatile OIML and NTEP-certified aluminum single-point load cell. The metric 108UA covers 50 to 1,000 kg, while the UNC imperial 108UAUN extends the range from 30 to 1,500 kg — both supporting a 750×750 mm or 29.53 x 29.53 inches platform. OIML MAA C7.5 (30 kg), OIML MAA C6 (50 to 500 kg), and OIML MAA C4 (635 to 1,500 kg), together with NTEP 1:5000 (30 to 500 kg) Class III and NTEP 1:4000 (635–1,500 kg) Class III certifications, deliver full legal-for-trade coverage across the range. Side-load compensation and off-center loading tolerance make it well-suited for the demanding conditions of retail checkout scales, airport baggage systems, postal sorting, packaging devices, and process supervision. The load cell’s exceptional interchangeability makes it a preferred sourcing solution for scale manufacturers and service companies worldwide.
Most Common Applications: Retail checkout scales, airport baggage scales, postal and courier scales, packaging and process scales, conveyor scales, OEM platform manufacturing.
- 30 to 1,500 kg Versatile Capacity Range: The 108UA covers 50 to 1,000 kg (metric) and the 108UAUN extends to 30 to 1,500 kg (imperial UNC), supporting platforms 750×750 mm or 29.53 x 29.53 inches — one of the broadest single-point ranges available.
- Metric (108UA) & Imperial UNC (108UAUN) Threading: Available in both metric and UNC imperial thread versions for seamless integration into global and North American scale manufacturing and service environments.
- OIML MAA C7.5/C6/C4 & NTEP Class III Certified: Full legal-for-trade coverage — NTEP 1:5000 (30 to 500 kg) Class III and NTEP 1:4000 (635 to 1,500 kg) Class III; OIML MAA C7.5 (30 kg), OIML MAA C6 (50 to 500 kg), and OIML MAA C4 (635 to 1,500 kg).
- ATEX, FM & IECEx Certified: .
- Compensated for Side Loading: Engineered to perform reliably in dynamic and static applications where off-center and side loads are common, including conveyor scales, retail checkouts, and process weighing.
- Wide Interchangeability: Drop-in compatible with ANYLOAD 651BAUN, Coti Global CG-50, Flintec PCB, HBM PW12B/PW12, Rice Lake RL1250/RL1218A, Vishay Celtron LOC, Vishay Revere 652, Vishay Sensortronics 60060, and Vishay Tedea-Huntleigh 1250.
ATEX certified for a single load cell to II 1 G Ex ia IIC T6 Ga; -40°C < Ta < +60°C & II 1 D Ex ia IIIC T83°C Da; -40°C < Ta < +60°C. For multiple load cells to II 1 G Ex ia IIC T4 Ga; -40°C < Ta < +60°C FM certified for a single load cell to Class I, II and III, Division 1, Groups A, B, C, D, E, F and G; T6; -40°C < Ta < +60°C. For multiple load cells to Class I, Division 1, Groups A, B, C and D; T4; -40°C < Ta < +60°C IECEx certified for a single load cell to Ex ia IIC T4 Ga.
| Capacities | 30 kg (66.14 lb), 50 kg (110.23 lb), 100 kg (220.46 lb), 150 kg (330.69 lb), 200 kg (440.92 lb), 300 kg (661.39 lb), 500 kg (1,102.31 lb), 635 kg (1,399.91 lb), 700 kg (1,543.24 lb), 1,000 kg (2,204.62 lb), 1,500 kg (3,306.93 lb) |
|---|---|
| Combined Error | – |
| Non-Linearity | <±0.017% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ±10% |
| Maximum Excitation | 15 VDC |
| Bridge Resistance | 350 Ω ±3 |
| Operating Temperature | −18°C to +65°C (−0.4°F to +149°F) |
| Compensated Temperature | −10°C to +40°C (14°F to +104°F) |
| Sealing Standard | IP66 |
| Material | Aluminum |
| Protective Coating | Clear Anodized |
