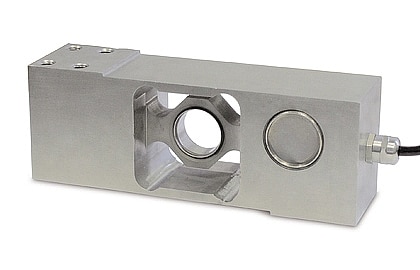

AZLI Single Point Load Cell
The Laumas AZLI is a high-precision 17-4PH stainless steel single-point load cell supporting 400 x 400 mm or 15.75 x 15.75 inches platform (10 to 50 kg) and 800 x 800 mm or 31.50 x 31.50 inches platform (100 to 500 kg), with OIML R60 C3/C4 certification, NTEP certification, and IP68 protection.
With Hazardous Environment Certification, it is the stainless steel upgrade for demanding environments requiring corrosion resistance and high accuracy.
PRODUCT DETAILS
AZLI takes the proven AZL single-point platform load cell design and upgrades it to 17-4PH stainless steel with full IP68 immersion protection, making it the premier choice for platform scales that must operate in harsh or wet environments. With support for both 400 x 400 mm or 15.75 x 15.75 inches and 800 x 800 mm or 31.50 x 31.50 inches platform sizes across a capacity range of 10 to 500 kg, the AZLI covers a wide range of commercial and industrial weighing applications. Its combination of NTEP (USA/Canada), OIML R60, FM HazLoc, ATEX, and IECEx certifications makes it one of the most comprehensively certified single-point load cells in its class.
Most Common Applications: Stainless steel platform scales, washdown-rated floor scales, food-grade retail and industrial scales, certified outdoor platform scales, hazardous area weighing.
- Dual Platform Size Coverage: Serves both 400 x 400 mm or 15.75 x 15.75 inches platform (10 to 50 kg) and larger 800 x 800 mm or 31.50 x 31.50 inches platform (100 to 500 kg) in a single product family, providing flexibility for a wide range of scale sizes.
- 17-4PH Stainless Steel: Premium precipitation-hardened stainless steel construction provides superior corrosion resistance and mechanical strength, ideal for washdown, hygienic, and outdoor environments.
- IP68 Protection: Fully rated for continuous immersion, ensuring reliable performance in wet environment, outdoor installations, and high-pressure washdown environments.
- NTEP & FM HazLoc Certified: Approved for legal-for-trade commercial weighing in North America and certified for hazardous area installations in both the USA and Canada, making it one of the most compliance-ready single-point load cells available.
- C3/C4 Accuracy Class: OIML R60 C3/C4 dual accuracy class with combined error ±0.02% (0.017% C4) for the highest precision legal-for-trade platform weighing.
| Capacities | 10 kg (22lb), 20 kg (44lb), 50 kg (110 lb) / 100 kg (220 lb), 200 kg (440 lb), 300 kg (660 lb), 500 kg (1,100 lb) |
|---|---|
| Combined Error | ≤ ±0.02% (C3) / ≤ ±0.017% (C4) |
| Non-Linearity | – |
| Safe Overload | 150% |
| Ultimate Overload | 300% |
| Full Scale Output | 2 mV/V ±10% |
| Maximum Excitation | 18 V |
| Bridge Resistance | 350 Ω ±3.5 (input/output) |
| Operating Temperature | -35 °C to +65 °C (-31 °F to +149 °F) |
| Compensated Temperature | -10 °C to +40 °C (+14 °F to +104 °F) |
| Sealing Standard | IP68 |
| Material | 17-4 PH Stainless Steel |
| Protective Coating | – |
