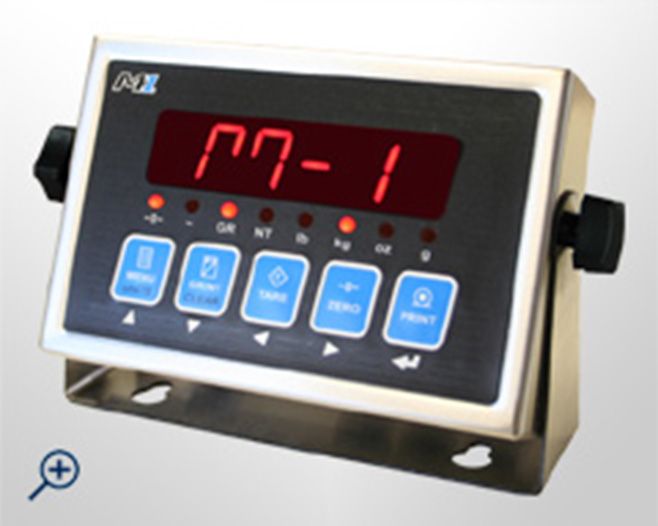

M1 Digital Load Cell Weight Indicator
Western Scale M1 is a high quality entry level LCD digital weight indicator suitable for most NTEP weighing applications. Includes filtering for animal weighing.
Highlights
- Wired Digital Indicator
- Stainless steel enclosure
- Tough, weather resistant
- 100-240 VAC power requirements
- NTEP Approved Class III
- 2 year warranty
The M1 digital indicator is an entry level indicator that is easy to used and adaptable to a wide variety of weighing applications. One of the most attractive aspects of the indicator is its competitive price which makes it one of our top selling indicators. It has lots of extras such as Peak Hold, Cattle motion filtering, Auto Print function, and can be used as a keypad functional Remote Display.
The M1 Digital Indicator is designed to simplify weighing processes across diverse applications. Its user-friendly interface and adaptability make it a go-to choice for a wide spectrum of users, from entry-level to advanced weighing needs.
Choose the M1 Digital Load Cell Weight Indicator for unmatched reliability, adaptability, and functionality in weighing applications.
| Filtering | DYNArrest Vibration Filtering System |
|---|---|
| Calibration | Via 5 button keypad to any test weight |
| Sealing | Password (Category 1 Audit Trail system) |
| Communications | Two fully configurable, full duplex RS 232 serial port Configurable data format and selectable output strings Wireless Communications option |
| Power | AC: 100-240 V 50/60 Hz |
| Excitation | 5VDC. Up to 4-350 ohm or 8-700 ohm load cells |
| Keypad | 5 button, membrane keypad |
| Display | 7/8″ LED 6 digit (7 segment) |
| Resolution | 1 million internal A/D counts |
| Enclosure | 304 stainless steel with swivel bracket |
| Operating Temperature | -10°C to 40°C |
| Approvals | NTEP Class II/IIIL. Measurement Canada Class III |
Please click on the following links to download or view additional information:
- Manual M1 Load Cell Indicator
- Brochure Scale Link
