Laumas V100000 weigh module pairs with Laumas CBL compression load cell for compact and accurate tank, hopper and vessel weighing.
Load cell mounting kits – weigh modules for CBL button-type low profile compression load cells provide unequalled performance as tank scales, hopper scales or for any application where load is applied from above.
Engineered to deliver unmatched performance, these weigh modules are ideal for tank scales, hopper scales, or any application where loads are applied from above.
Simply bolt the bottom to the foundation and the top of the assembly to your tank leg. Load cell signals can then be summed through a summation box which is then wired to an indicator. A tank scale or hopper scale with three and four legs is easier to level and ensures best performance.

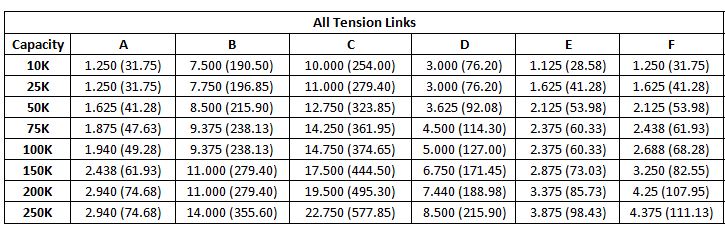

| Capacities
(pounds) |
10K lb to 250K lb tension scales (standard models);
custom capacity tension scales available |
| Accuracy | Tension load accurate to 0.1% FS with multi-point calibration |
| Safe Overload | 200% full scale safe overload |
| Ultimate Overload | 400% full scale ultimate overload |
| Full Scale Ouput | 2 mV/V nominal |
| Maximum Excitation | 10 volts DC |
| Operating Temp | -40°C to +80°C |
| Compensated Temp | -10°C to +40°C |
| Sealing Standard | IP-67 protected from dust and high pressure jets of water |
| Material | Nickel plated high strength alloy steel |
| Bridge Resistance | 350 Ohm |
