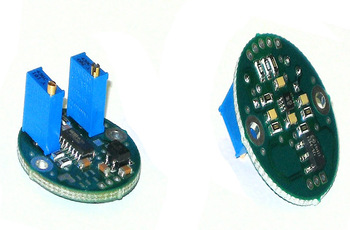

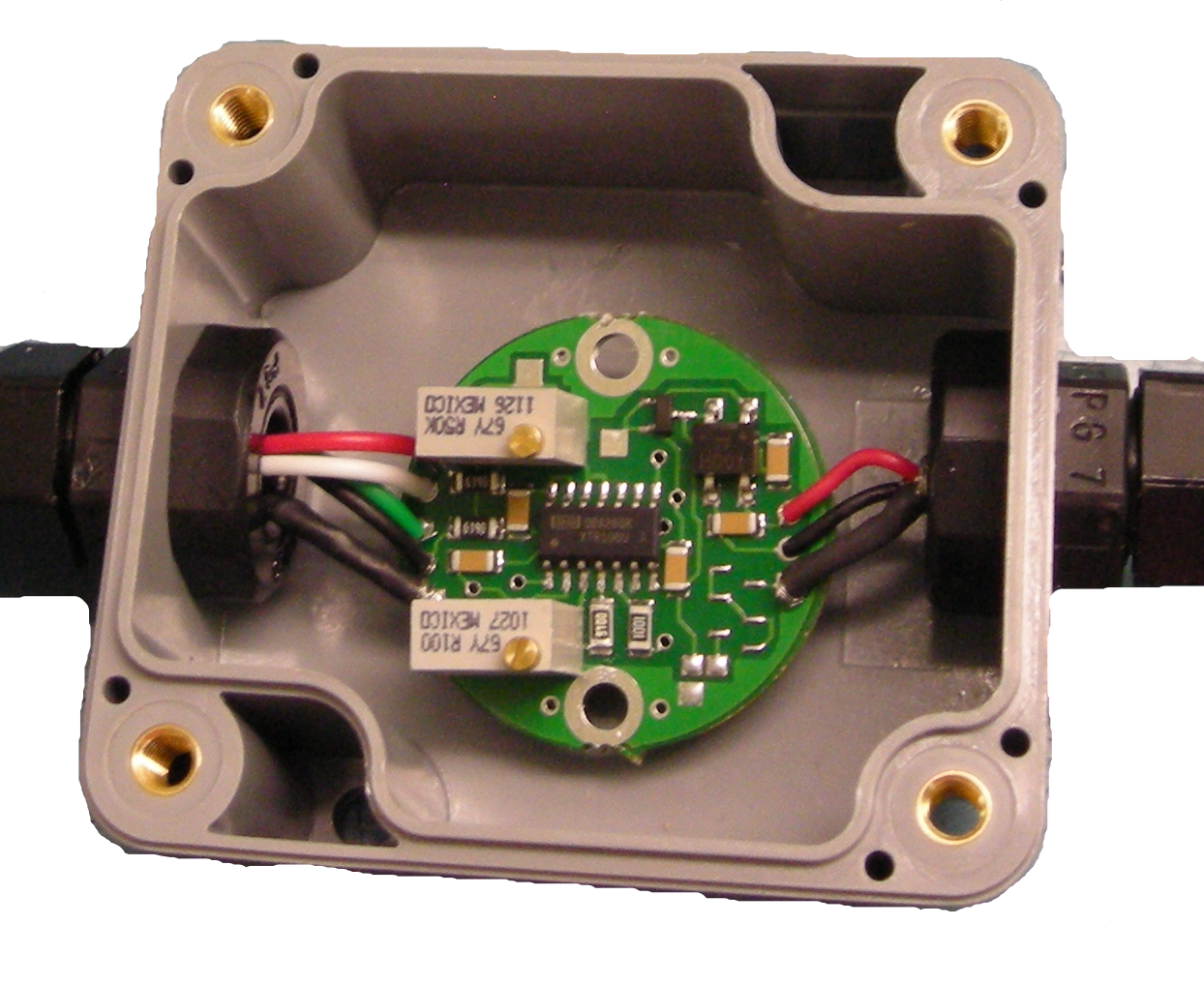

ML-4-20MA INTERNAL LOAD CELL AMPLIFIER

IMAGES

Massload internal load cell 2-wire 4-20mA amplifier is a reliable and cost effective solution suitable for most standard load cell to PLC applications. Powered by 9-30V DC.

Highlights

  • Internal 4-20mA load cell amplifier for PLC applications
  • Reliable and cost effective solution
  • Suits most standard load cells
  • Convenient wide power supply range 9-30V DC

Massload internal load cell 2-wire 4-20mA amplifier is a reliable and cost effective solution suitable for most standard load cell to PLC applications. Powered by 9-30V DC.

Capacities

(pounds)

10K lb to 250K lb tension scales (standard models);

custom capacity tension scales available

Accuracy Tension load accurate to 0.1% FS with multi-point calibration
Safe Overload 200% full scale safe overload
Ultimate Overload 400% full scale ultimate overload
Full Scale Ouput 2 mV/V nominal
Maximum Excitation 10 volts DC
Operating Temp -40°C to +80°C
Compensated Temp -10°C to +40°C
Sealing Standard IP-67 protected from dust and high pressure jets of water
Material Nickel plated high strength alloy steel
Bridge Resistance 350 Ohm
