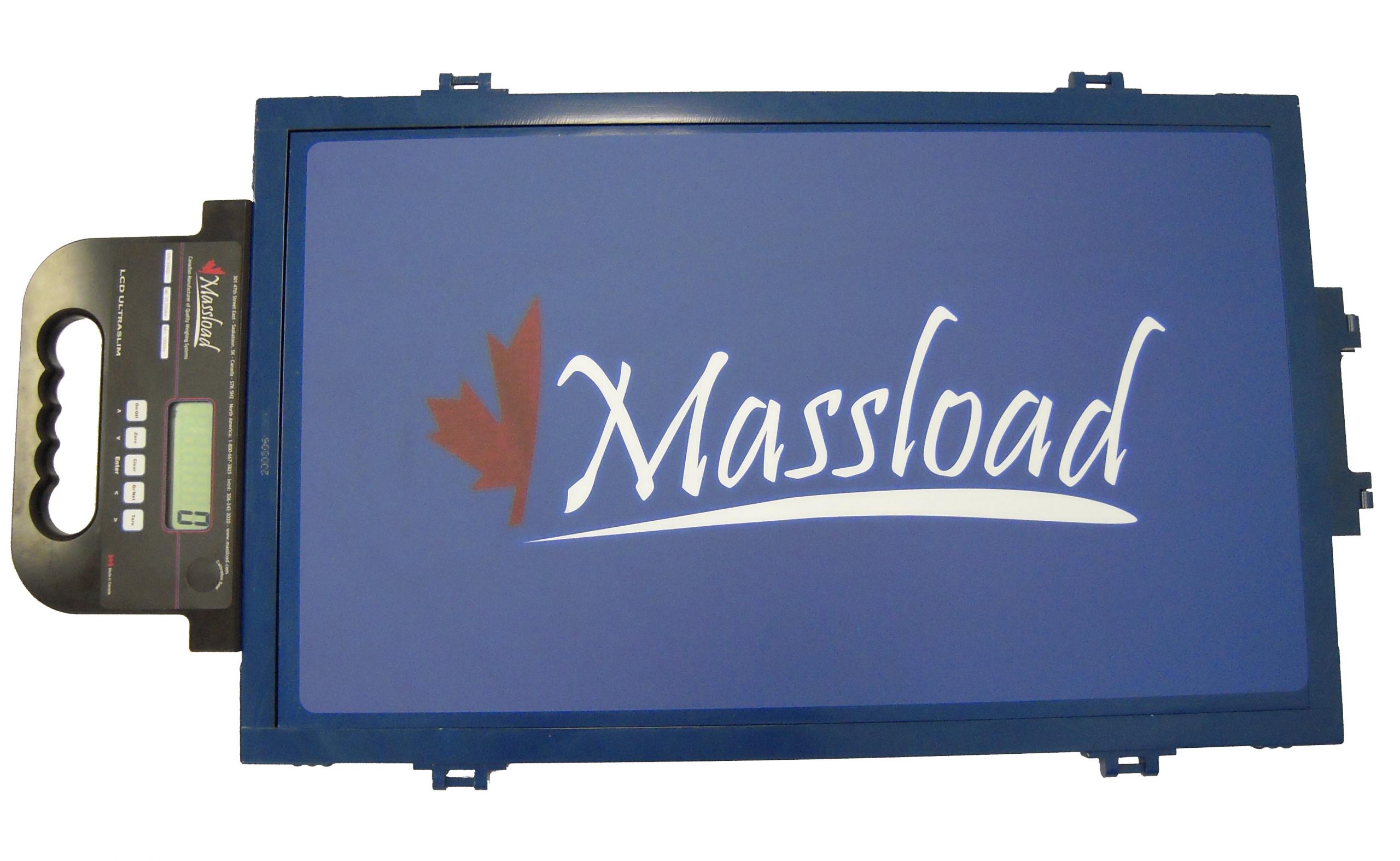

Ultraslim Wheel Load Scale
Massload’s extremely popular Ultraslim low profile portable wheel scale with dual tire weigh surface comes with large easy-to-read backlit LCD display or wireless options for fast, easy-to-use vehicle weight enforcement
Highlights
- Ultraslim hand portable vehicle weight scale
- Available as cabled wheel weight scale, integrated LCD display or 2.4 Ghz Wireless
- 20,000 lbs and 40,000 lbs capacities per wheel weigher
- Large 30″ x 18″ weighing surface for dual tires
- Extreme low profile 0.8″ reduces weigh error in absence of multi-axle levelling
- Used for check weighing, not certified legal-for-trade
- Wheel load accurate to within 0.5% FS (comparable to Haenni wheel load scale)
- Calibrated in lbs or kg to NIST traceable standards
- Weigh on concrete or asphalt is recommended
- Extra strong baseplate for use on compacted gravel. Soft or spongy surfaces to be avoided
- Levelling recommended for multi-axle weighing

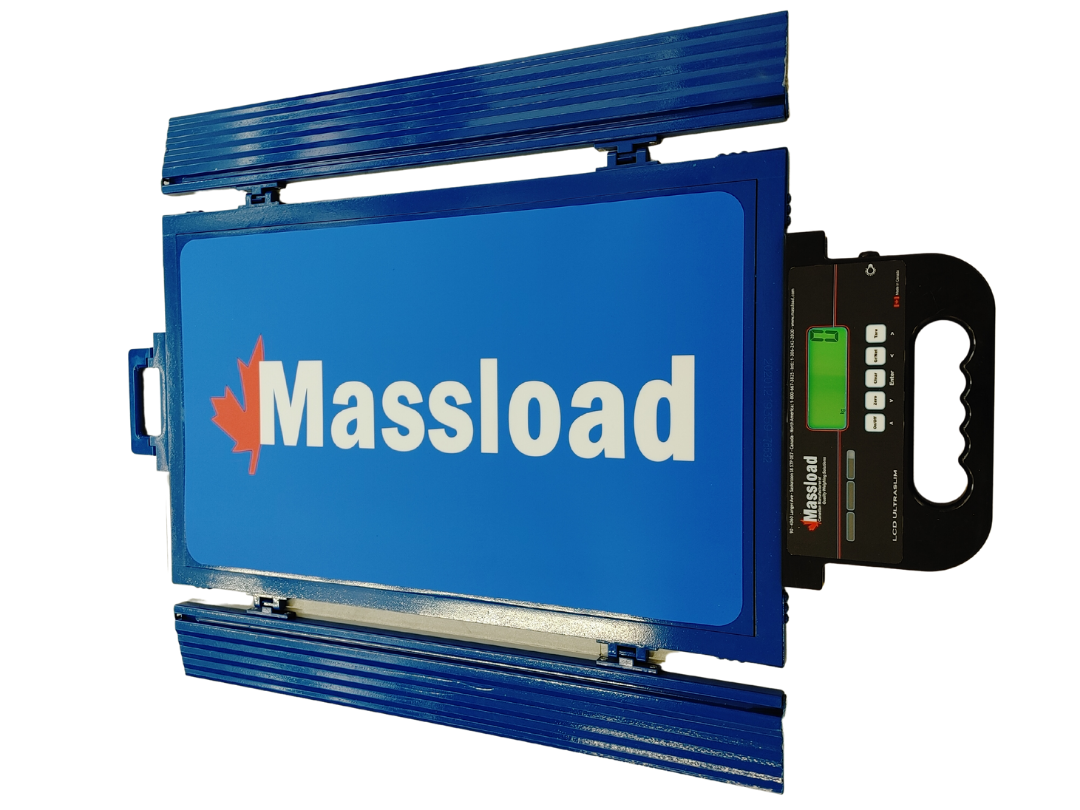

Each weigh pad comes with two attachable ramps for static weighing. Should dynamic weighing be required, we recommend extra long weigh pads (1 meter) and leveling track. See portable weigh-in-motion for more information on using Ultraslim weigh scales to obtain dynamic weight.
These weigh pads are not legal-for-trade in obtaining static weight or dynamic weight.

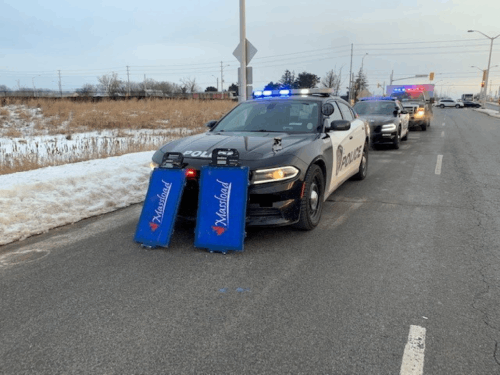

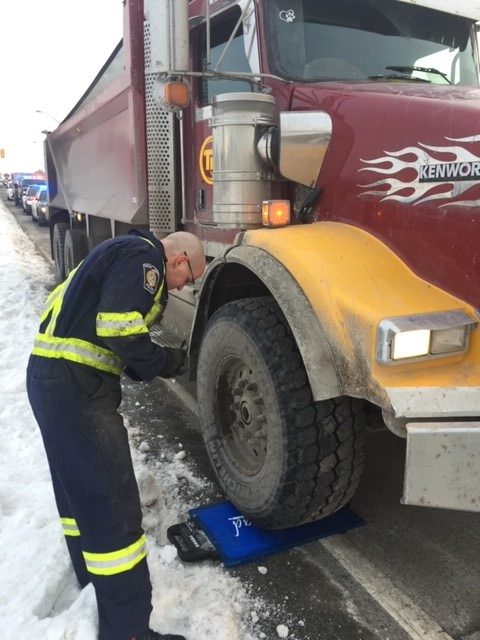

The Ultraslim Portable Vehicle Weight Scale is the perfect solution to roadside vehicle weight checking and enforcement.
Each Portable Vehicle Weight Scale comes with two attachable ramps for static weighing. Levelling tracking should be used for multi-axle weighing.

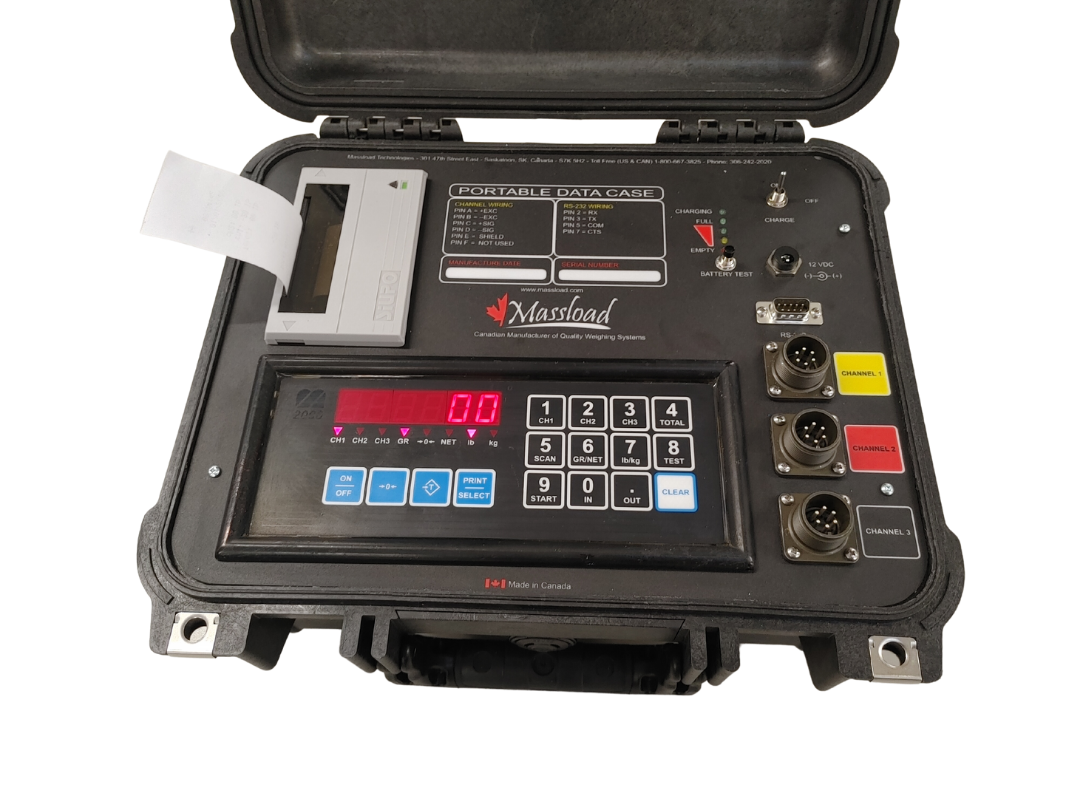

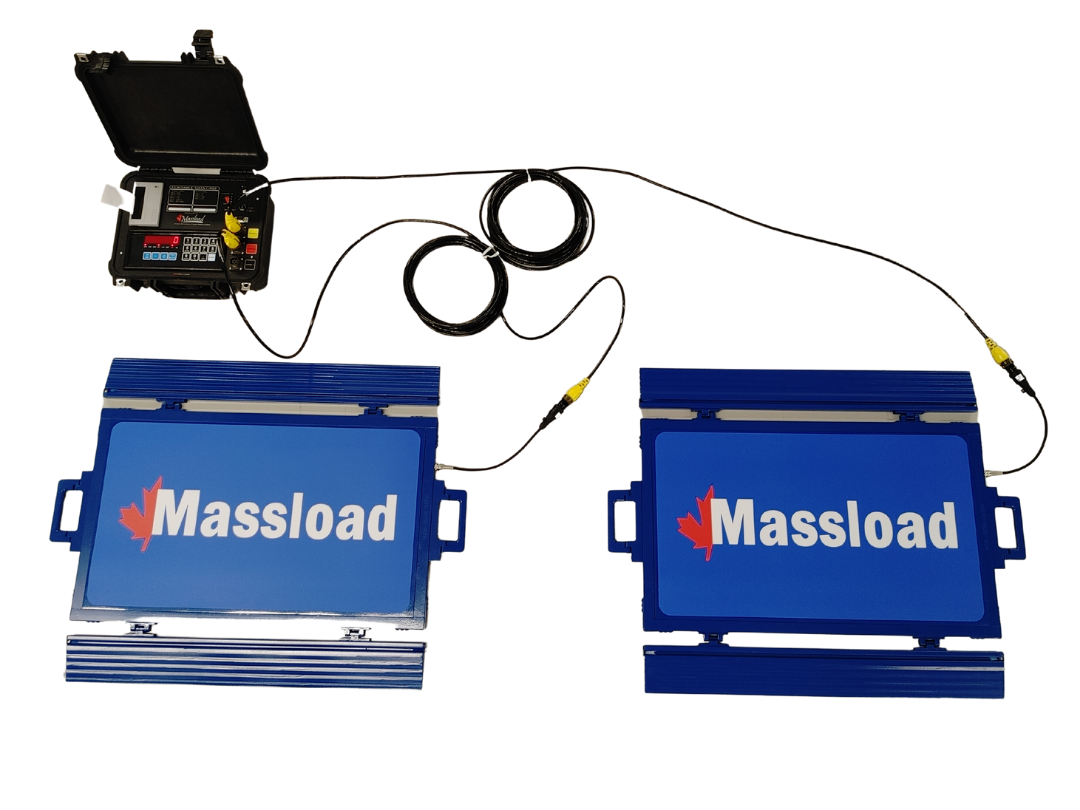

Available with built in LCD display, built-in wireless, or with quick disconnect cable to a Portable DataCase Weight Ticket Processor.
These portable vehicle weight scales are not intended for use in legal-for-trade applications.
| Rated Capacity (pounds) | 20,000 lbs wheel weigh scale |
|---|---|
| Accuracy | Wheel load accuracy better than 0.5% FS nominal |
| Overload Capacity | 125% full scale safe overload |
| Temperature Range | -30ºC to +60ºC (operating) |
| Graduation | 20 lbs (20,000 lbs capacity) (typical) |
| Weight | 52 lbs (cabled wheel load scale) |
| Material | High strength aluminum frame and weighing surface |
| Ground Requirements | These wheel weighers must be used on a hard level and flat surface only and should be level within 1/8″ per square meter |
| Dimensions | Max: 39 1/4″ x 28 1/2″ x 0.8″; weighing surface: 16 3/8″ x 28″ |
| Sealing Standard | IP-66: totally protected from dust; protected from strong jets of water |
| Power | Wired scale model is powered by its indicator |
Please click on the following links to download or view additional information:
- Brochure Massload LCD Ultraslim Portable Vehicle Weight Scale
- Brochure: Massload Ultraslim Portable Vehicle Weight Scale with Portable Data Case
- Brochure Massload Wireless Ultraslim Portable Vehicle Weight Scale with LCD Handheld Display
- Brochure Massload Wireless Ultraslim Portable Vehicle Weight Scale with MAWS Software
- Brochure Massload-Wireless-Ultraslim Portable Vehicle Weight Scale with T24Log100 Software
