Mining Vehicle Scales

IMAGES

These large, heavy duty axle pad scales are ideal for mining truck weight checking and calibration of truck scales and loader scales to ensure optimized loading and operational throughput.

Highlights

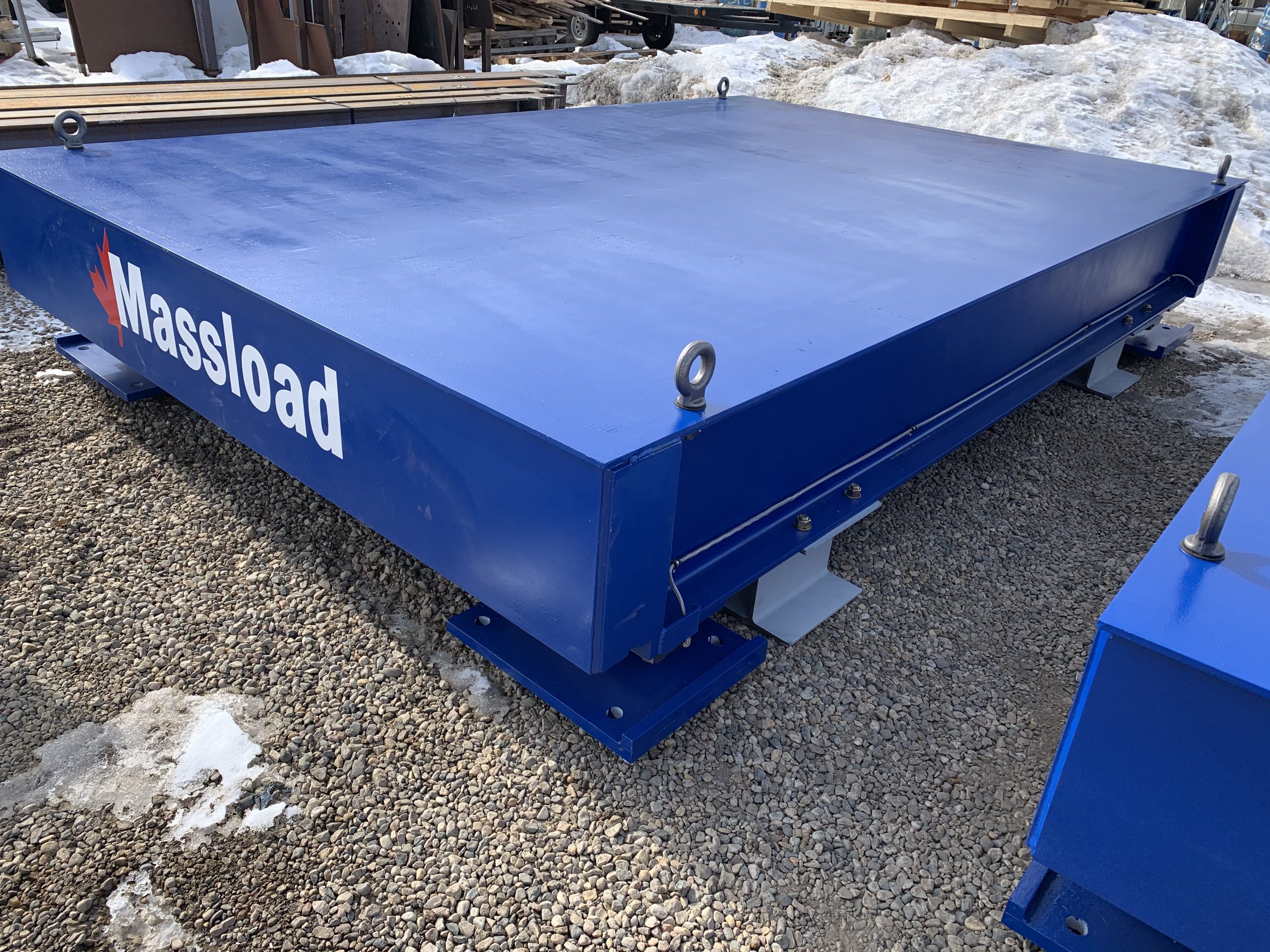

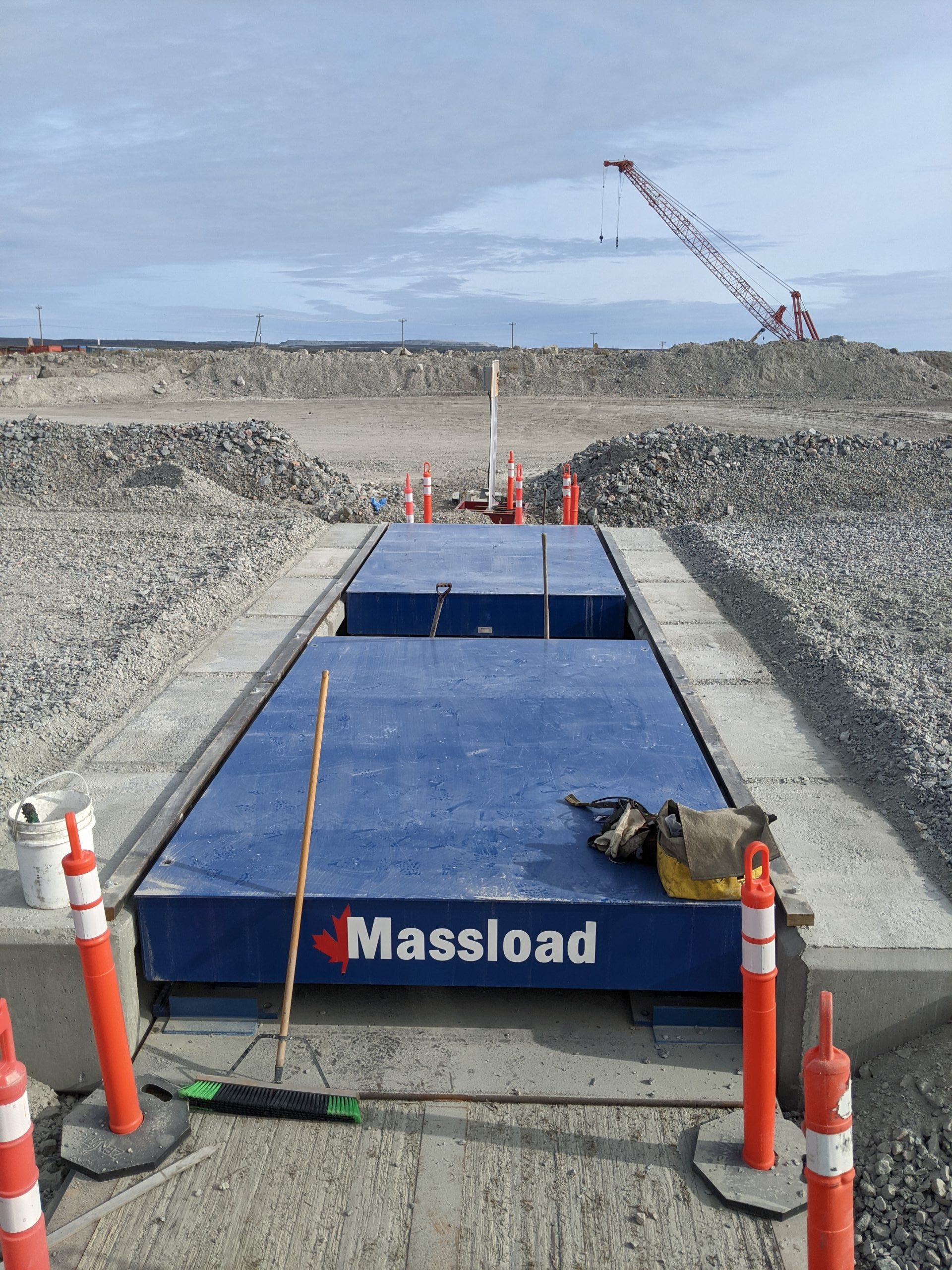

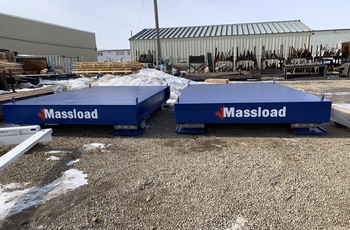

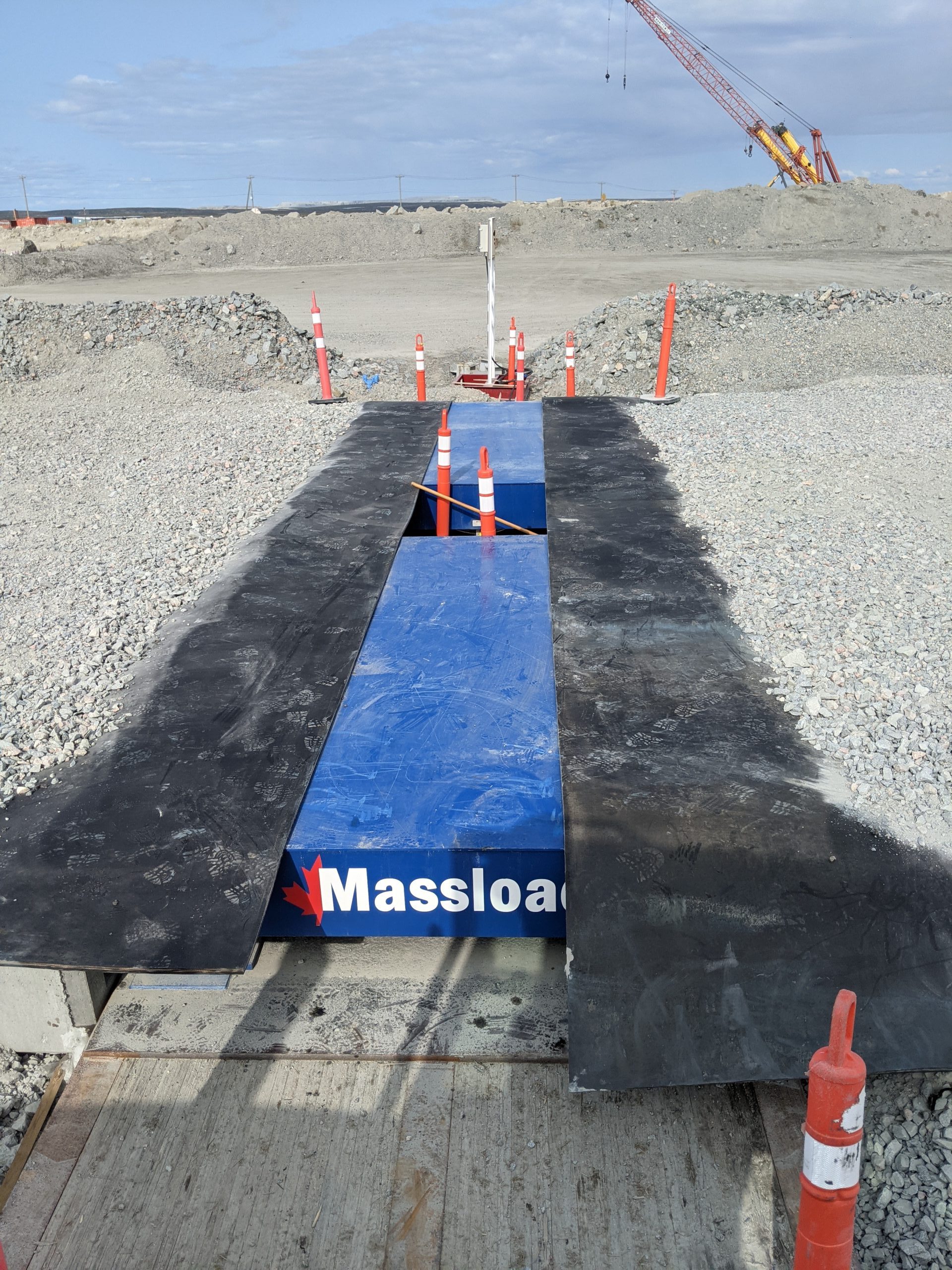

  • 12ft x 8ft axle scale for weighing Komatsu 830E-5 mining truck
  • Wheel load accuracy better than 1% FS
  • Large 4.5″ display with weight and stop-go traffic light signaling for truck driver
  • Wireless connection from scale to PC operating Massload Advanced Weigh Scale Software including …
  • Axle weight accumulation and totalization
  • Truck ID capture before or after weigh
  • Truck-in / truck-out
  • Data logging for operational analysis

These large heavy duty axle pad scales are ideal for mining truck weight checking and calibration of truck scales and loader scales to ensure optimized loading and operational throughput. Contact Massload for more details and to discuss your specific requirements by contact@dev.mload.idlwebdev.com or tel. 1-306-242-2020

This system it is not intended for legal for trade applications.

Our robust and heavy-duty axle pad scales are meticulously designed for the stringent demands of mining operations.

They serve as an indispensable tool for monitoring and calibrating onboard mining vehicle scales and loader scales, guaranteeing optimal loading efficiency and seamless operational flow.

Please note: This system is not intended for use in legal-for-trade applications.

Rated Capacity (pounds) 84″ axle scale: 30K per pad (60K per axle grouping)
144″ axle scale: 40K per pad (80K per axle grouping)
168″ axle scale: 30K per pad (80K per axle grouping)
Load Cells ML 1100-25K (Output: 2mV/V)
Accuracy Wheel loads accurate to 0.25% FS nominal
Overload Capacity 150% full scale safe overload
300% full scale ultimate overload
Temperature Range -40ºC to +80ºC (operating)
-10ºC to +40ºC (compensated)
Graduation 20lb (30K and 40K capacity)
Material Heavy duty high strength steel
Fatigue Limit Infinate cycles per day (wheel loads)
Ground Requirements The ground must be flat and level, with proper drainage
Dimensions 84″ x 30″ x 6″ (weighing surface)
144″ x 30″ x 6″ (weighing surface)
168″ x 30″ x 6″ (weighing surface)
Sealing Standard IP-66: totally protected from dust; protected from strong jets of water
Power Axle scales are powered by a wired load cell display
