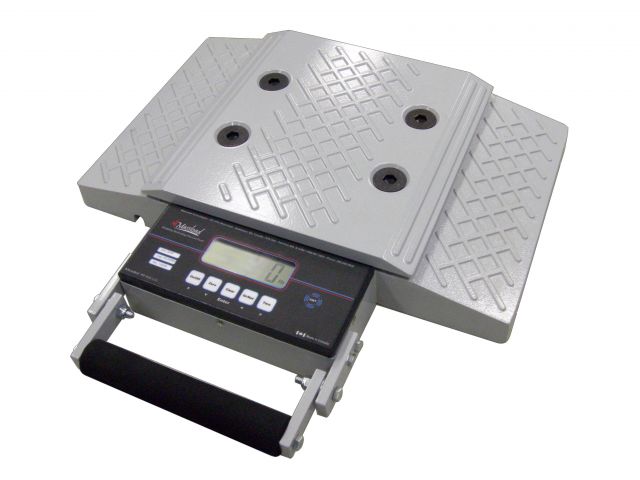

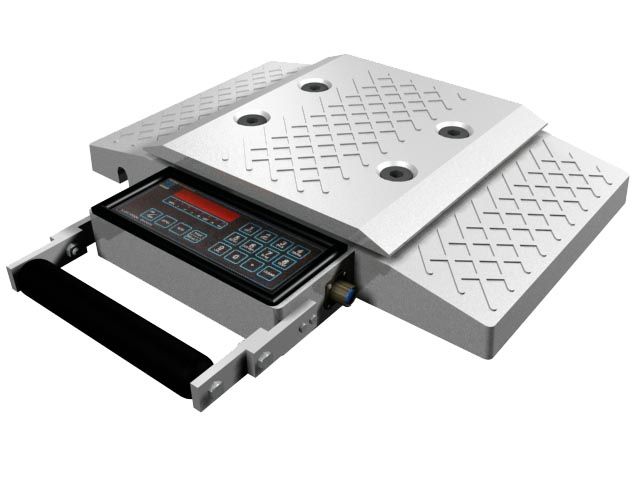

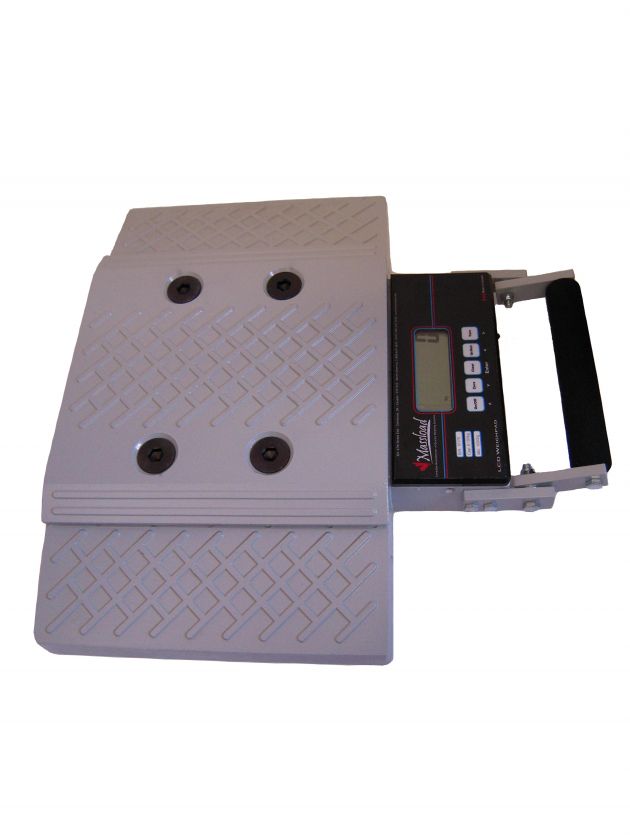

Standard Wheel Load Scale
These light weight yet rugged wheel load scales are ideal for wheel weighing on the go. Built with our high quality Canadian made load cells in a heavy duty cast aluminum body and our highly accurate LCD display providing a cost effective truck scale. We regret this model is currently unavailable while we resolve supply chain issues.
Highlights
- Portable wheel loadscale
- Hand portable and light weight truck scale
- Massload’s lowest priced truck axle scale
- Wheel load accurate to within 0.25% FS
- Frequently used for check weighing and to avoid overweight fines
- Wheel load scales can be used on most hard level surfaces
- 2 Year warranty on truck scales and load cells
The weighing surface will accommodate dual tires; however, the second tire will not be completely on the pad but it will be off the ground to ensure accurate weighing. Its non skid patterns ensure maximum grip in wet or snowy conditions.
***THIS MODEL IS UNAVAILABLE DUE TO SUPPLY CHAIN ISSUES***
Built with precision engineering techniques, these wheel weigher scales provide an ideal solution for on-the-go weighing, meeting the demands of various industries.
Engineered to perform with accuracy rates as high as 0.25% FS, these wheel load scales stand out as an essential tool for check weighing and preventing costly overweight fines.
| Rated Capacity (pounds) | 10K weigh scale model |
|---|---|
| Load Cells | ML 600-5K (Output 3mV/V) |
| Accuracy | Wheel load accurate to 0.25% FSnominal |
| Overload Capacity | 150% full scale safe overload |
| Temperature Range | -20°C to + 60°C (operating) |
| Graduation | 10 lbs (10,000 lbs capacity) and 20 lbs (20,000 lbs capacity) |
| Weight | 40 lbs per weight pad |
| Material | High Strength Aluminum |
| Fatigue Limit | Unlimited cycles per day |
| Ground Requirements | These weigh pads must be used on a hard level and flat surface only, and should be level within 1/8″ per square meter |
| Dimensions | Max: 20″x20″x2 7/8″ (pad, handle, ramps) |
| Sealing Standard | IP-65 (LED Model): totally protected from dust; protected from low pressure jets of water from all directions; limited water entrance allowed. |
| Power | Rechargeable gel cell battery (comes with charger) |
Please click on the following links to download or view additional information:
- Brochure LCD Wheel Load Scale
- Brochure LED Master Slave Wheel Load Scale
- Manual Massload LCD programming and calibration
- Manual LED (M2000) Master Slave
- Manual LED (M2000) Master
- Manual LED (M2000) Trouble-shooting
