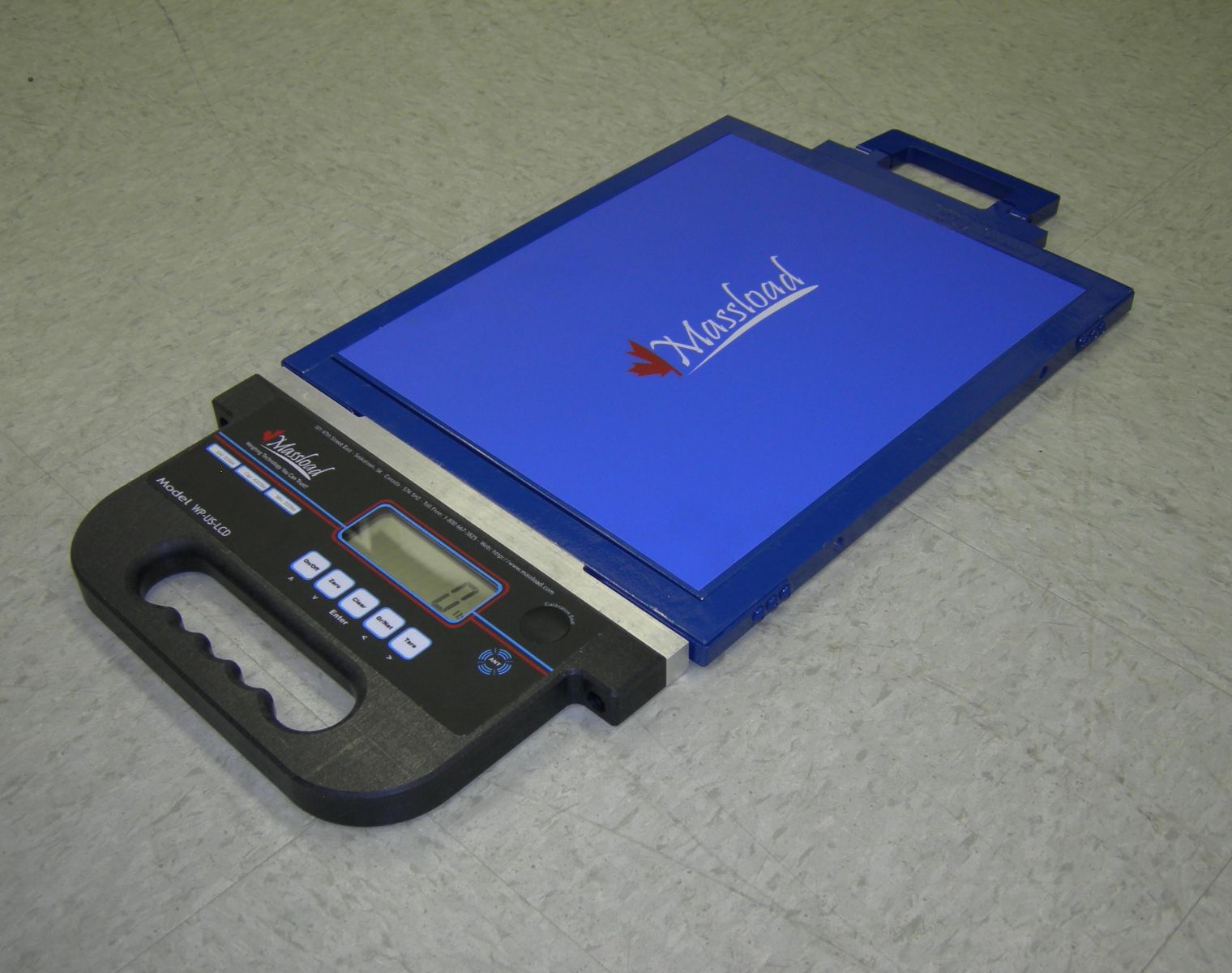

Ultraslim LCD Portable Vehicle Weight Scale with backlight with ramps Massload- Technologies

Side view of LCD Ultraslim Portable Vehicle Weight Scale with backlight with ramps by Massload Technologies

Wireless Ultraslim Portable Vehicle Weight Scale by Massload Technologies

Ultraslim Portable Vehicle Weight Scale with M2000 Portable Data Case Weigh Scale Processor Massload Technologies

LCD Ultraslim Portable Vehicle Weight Scale By Massload Technologies

LCD Ultraslim Portable Vehicle Weight Scale with backlight on with ramps by Massload-Technologies

Ultraslim Wheel Scale LCD Display Handle with backlight on by Massload-Technologies

LCD Ultraslim Wheel Scale Display Handle backside By Massload-Technologies

Our extremely popular low profile Ultraslim wheel load scale has a dual tire weigh surface and our large LCD display making it a very portable and easy-to-use wheel weigher. With weigh pad capacities up to 40,000 lbs, it provides an economical truck axle scale for Tandems, Tri-Axle Trailer, Super-B Trains, Ag Equipment, Law Enforcement Vehicles & more.

Highlights

Ultraslim hand portable vehicle weight scale.
Available as cabled wheel weight scale, integrated LCD display or 2.4 Ghz Wireless
20,000lbs and 40,000lbs capacities per wheel weigher
Large 30″ x 18″ weighing surface for dual tires
Extreme low profile 0.8″ reduces weigh error in absence of multi-axle levelling
Used for check weighing, not certified legal-for-trade
Wheel load accurate to within 0.5% FS (comparable to Haenni wheel load scale)
Calibrated in lbs or kg to NIST traceable standards
Weigh on concrete or asphalt is recommended
Extra strong baseplate for use on compacted gravel. Soft or spongy surfaces to be avoided
Levelling recommended for multi-axle weighing

ADD TO QUOTE

Each weigh pad comes with two attachable ramps for static weighing. Should dynamic weighing be required, we recommend extra long weigh pads (1 meter) and leveling track. See portable weigh-in-motion for more information on using Ultraslim weigh scales to obtain dynamic weight.

These weigh pads are not legal-for-trade in obtaining static weight or dynamic weight.

Avoid costly overweight fines with the Ultraslim Portable Vehicle Weight Scale from Massload. Our Ultraslim wheel load scale is extremely low profile and portable making it extremely convenient. Massload’s Ultraslim wheel weigher scale is lightweight yet proven to be durable in the most rugged situations.

The Ultraslim Portable Vehicle Weight Scale is the perfect solution to avoid vehicle overloading and maximize load efficiency. Make sure you aren’t overloaded with these wheel load scales and avoid fines, increased running costs/downtime, loss license, increased likelihood of accidents and even damage to roads. In addition to that, our vehicle weight scale ensures even distribution of your load.

As a business owner, transport manager or driver, you need to be aware of the risk of overloading your vehicle and the penalties that you can encur. Invest in Massload’s Ultraslim Portable Vehicle Weight Scale and save!

Each Wheel Load Scale comes with two attachable ramps for static weighing. Levelling tracking should be used for multi-axle weighing. For dynamic weighing, we recommend our 1 meter long Wheel Load Scale and leveling track. See portable weigh-in-motion for more information on using Ultraslim Portable Vehicle Weight Scale to obtain dynamic weight.

These portable vehicle weight scales are not intended for use in legal-for-trade applications.

Available with built in LCD display, built-in wireless, or with military quick disconnect cable.

Specifications
Documents & Drawings

Rated Capacity (pounds)	20,000 lbs wheel weigh scale 40,000 lbs wheel weigh scale
Accuracy	Wheel load accuracy better than 0.5% FS nominal
Overload Capacity	125% full scale safe overload 150% full scale ultimate overload
Temperature Range	-30ºC to +60ºC (operating) -10ºC to +60ºC (compensated). Net 0.10% FS static error for every 10ºC departure from 20ºC
Graduation	20 lbs (20,000 lbs capacity) (typical) 50 lbs (40,000 lbs capacity)
Weight	52 lbs (cabled wheel load scale) 55 lbs (LCD/ wireless wheel load scale)
Material	High strength aluminum frame and weighing surface Heavy duty stainless steel base plate
Ground Requirements	These wheel weighers must be used on a hard level and flat surface only and should be level within 1/8″ per square meter

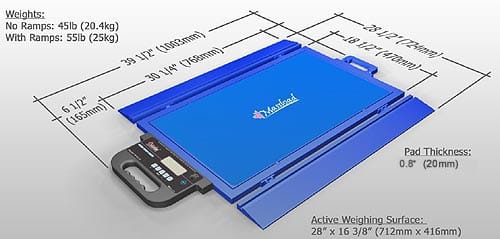

Dimensions	Max: 39 1/4″ x 28 1/2″ x 0.8″; weighing surface: 16 3/8″ x 28″
Sealing Standard	IP-66: totally protected from dust; protected from strong jets of water
Power	Wired scale model is powered by its indicator Wireless and LCD scale models are powered by AA batteries (LCD 4, WL 2)

Please click on the following links to download or view additional information:

Brochure Massload LCD Ultraslim Portable Vehicle Weight Scale
Brochure Massload Ultraslim Portable Vehicle Weight Scale with Portable Data Case
Brochure: Massload Wireless Ultraslim Portable Vehicle Weight Scale with LCD Handheld Display
Brochure: Massload Wireless Ultraslim Portable Vehicle Weight Scale with MAWS Software
Brochure: Massload Wireless Ultraslim Portable Vehicle Weight Scale with T24Log100 Software
Brochure Mini Ultraslim Wheel Load Scale
Manual Massload LCD Ultraslim programming and calibration
