TWA-50025-125K LOAD CELL WEIGH MODULE
Support local manufacture with Massload’s TWA50025K-75K double-ended load cell weigh modules for rugged and durable tank, hoper and vessel weighing.
Highlights
- Tension load cell for crane, winching, lifting, and hanging scale applications
- Rugged design for resistance to side loading
- Tension load accurate to 0.1% FS with multi-point calibration
- Numerous tension capacities (10,000 lbs and up)
- Custom tension capacity available
- Light weight and portable
- Small size for reduced head space

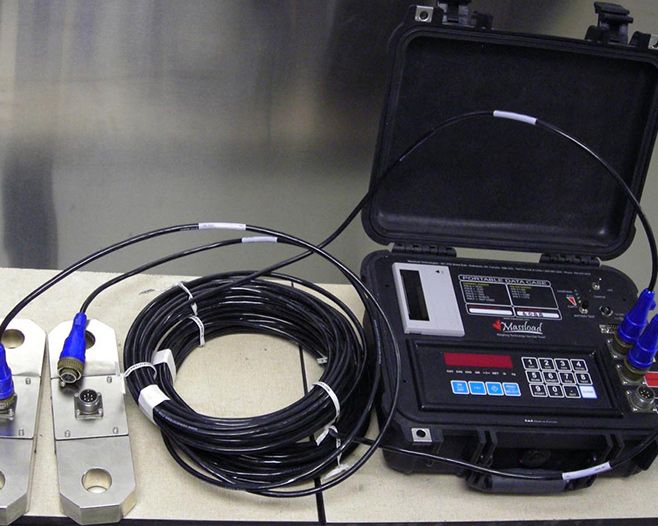

- Numerous options to display tension measurement

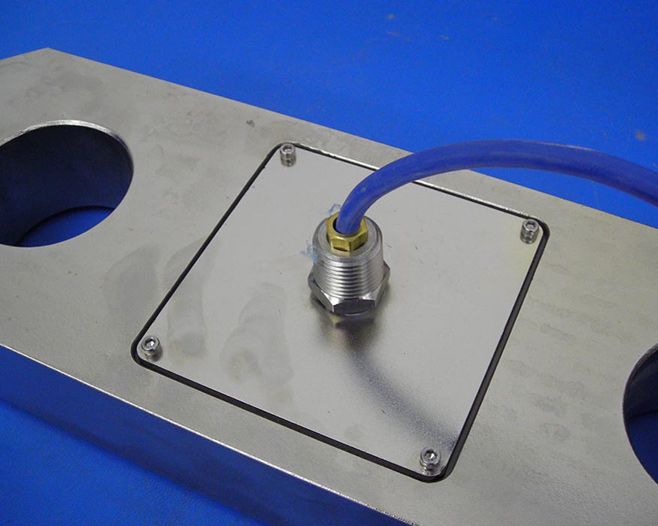

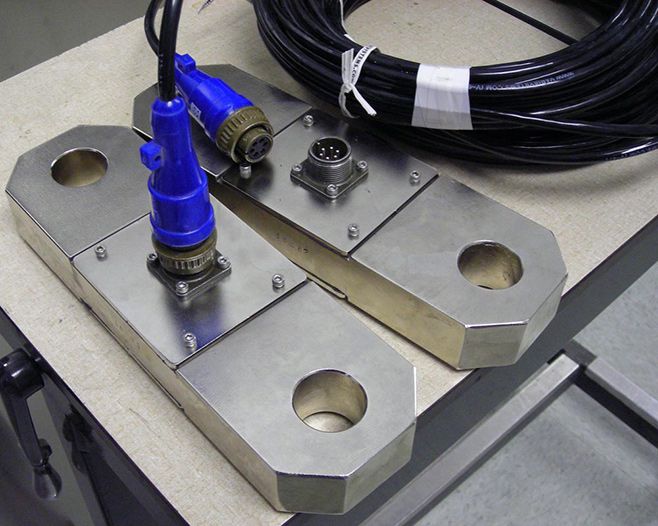

This dynamometer load cell is suitable for tension applications such as winching, hanging crane scale, and lifting systems. Openings at either end of the crane load cell allow for easy connection to shackles, wire rope, or other rigging. These hanging scales are available in capacities ranging from 10,000 lbs to over 250,000 lbs. Custom dynamometer capacity, size and safety factor is also available upon request. Each tension load cell is temperature compensated and environmentally sealed.
| Capacities
(pounds) |
10K lb to 250K lb tension scales (standard models);
custom capacity tension scales available |
| Accuracy | Tension load accurate to 0.1% FS with multi-point calibration |
| Safe Overload | 200% full scale safe overload |
| Ultimate Overload | 400% full scale ultimate overload |
| Full Scale Ouput | 2 mV/V nominal |
| Maximum Excitation | 10 volts DC |
| Operating Temp | -40°C to +80°C |
| Compensated Temp | -10°C to +40°C |
| Sealing Standard | IP-67 protected from dust and high pressure jets of water |
| Material | Nickel plated high strength alloy steel |
| Bridge Resistance | 350 Ohm |
Please click on the following links to download or view additional information:
- Brochure: Tension Link Dynamometer
- Brochure: Wireless Tension Link Systems
