MASSLOAD .NET ADVANCED WEIGH SCALE SOFTWARE (MAWS)

IMAGES

Support local with Massload’s .NET Advanced Weigh Scale Software for wireless weighing. Ideal for applications including data logging, axle weighing, multi-axle weighing, multi-scale weighing for tension link, platform and tank weighing, load out weighing, and truck in truck out operation.

Highlights

  • Multi-function vehicle weigh scale display and data logging software
  • Scale to PC connection by cable or T24 wireless
  • Wireless data capture and logging of up to 6 channels of wheel weigh data
  • Wheel weight, axle weight, and gross vehicle weight accumulation

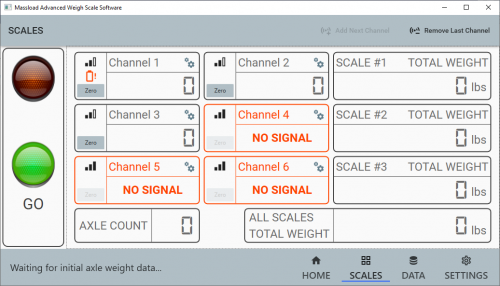

  • Built-in GUI Stop-Go traffic light display for axle by axle weight capture
  • Truck in/ truck out functionality
  • Vehicle ID data capture

Support local with Massload’s .NET Advanced Weigh Scale (MAWS) Software for wireless weighing. Ideal for applications including data logging, axle weighing, multi-axle weighing, multi-scale weighing for tension link, platform and tank weighing, load out weighing, and truck in truck out operation.

Frequency 900 MHzfor North America
Range Wireless communication of 100 to 150 ft line of sight
Battery 4 AA replaceable batteries
Battery Life Over 200 hours of continuous operation
Battery Conservation Hibernates when indicator is turned off (see options)
Sends a signal to hibernate the receiver
Sample Rate 3 updates per second
Antenna Fully enclosed and protected
Calibration Stored in the weight indicator
Sealing Standard IP-51: protected from dust and from vertical drops of water

Please click on the following links to download or view additional information:
