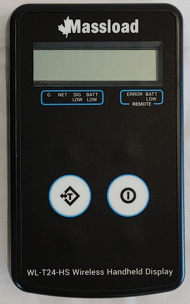

WL-T24-HS HAND HELD DIGITAL LOAD CELL INDICATOR
Massload 2.4Ghz Wireless hand held single channel load cell weight indicator with up to 2600ft (800m) range.
Highlights
- Two key operation offering tare functionality
- Can communicate with a wireless load cell transmitter or Massload wireless scales
- Single channel and 12 channel models available
- 2.4 Ghz radio link
- Wireless range of up to 800 m (2,600 ft) open field site
- Power: 2 AA replaceable batteries
- Battery powered 40 hours continuous use
- Auto ‘power on’ and ‘power off’ of remote transmitter module
- Data transmission to wireless printer capability
- Simple wireless configuration and calibration
- Waterproof to IP67
Massload 2.4Ghz Wireless hand held single channel load cell weight indicator with up to 2600ft (800m) range.
This wireless portable display receiver provides an 8 digit LCD reading from any of the T24 transmitter modules (strain gauge, current , voltage, temperature, pulse or potentiometer).
The remote handheld wireless receiver module can be ‘powered on’ and ‘powered off’ automatically as the T24-HS handheld is operated. Status indicators inform the user if the remote transmitter module has input integrity problems, low battery, low signal, over range or other error.
The T24-HS display can be toggled between gross and a tared value and can optionally be scaled to change measurement units.
The licence free 2.4 GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals
This wireless portable display receiver uses a pair of standard alkaline AA batteries and is configured using free T24 Toolkit software which runs on a PC connected to a T24 base station.
The T24-HS handheld display is typically seen in applications requiring wireless load cell measurement or wireless strain gauge display.
*Maximum range achieved in open field site at height of 3 metres (9.8 feet) above ground.
See Documents Product Sheet for more details and specifications
| Frequency | 900 MHzfor North America |
| Range | Wireless communication of 100 to 150 ft line of sight |
| Battery | 4 AA replaceable batteries |
| Battery Life | Over 200 hours of continuous operation |
| Battery Conservation | Hibernates when indicator is turned off (see options) Sends a signal to hibernate the receiver |
| Sample Rate | 3 updates per second |
| Antenna | Fully enclosed and protected |
| Calibration | Stored in the weight indicator |
| Sealing Standard | IP-51: protected from dust and from vertical drops of water |
Please click on the following links to download or view additional information:
- Brochure T24-HS Product Sheet
