1100 Double-Ended Shear Beam Load Cell Transducer

IMAGES

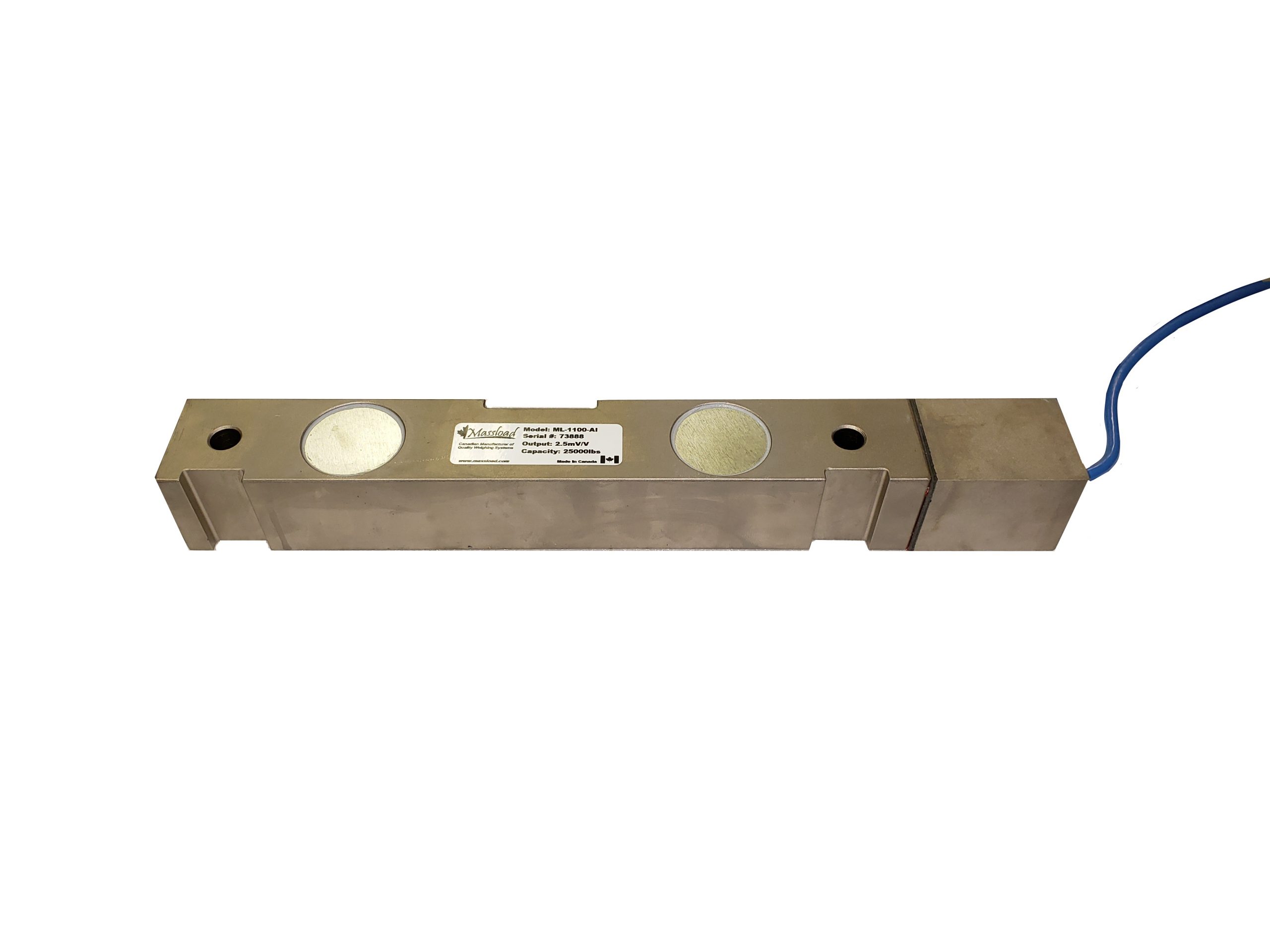

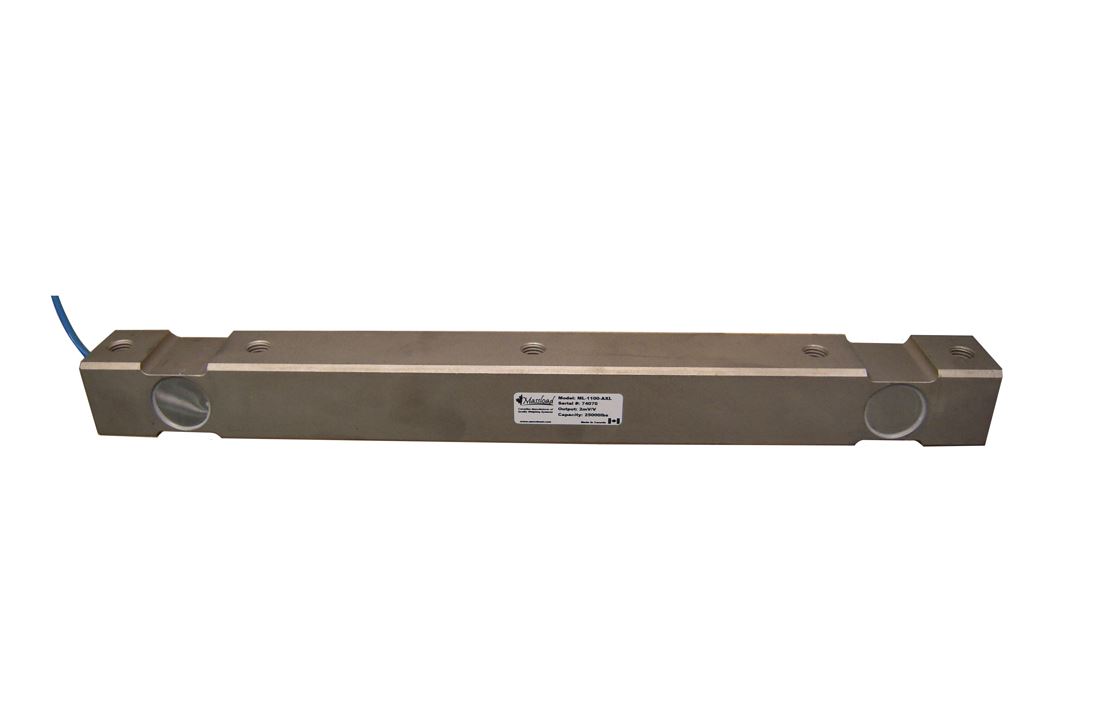

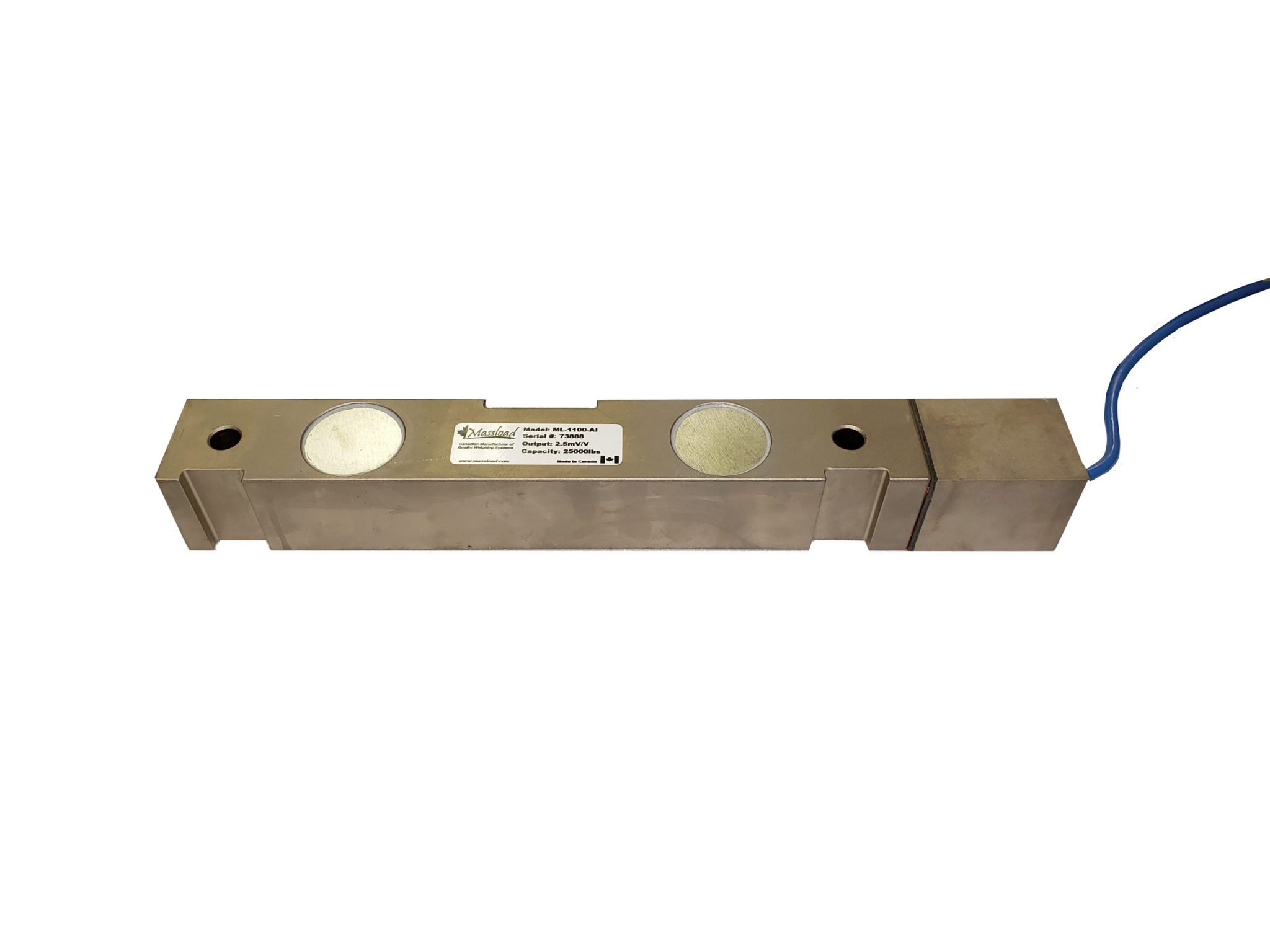

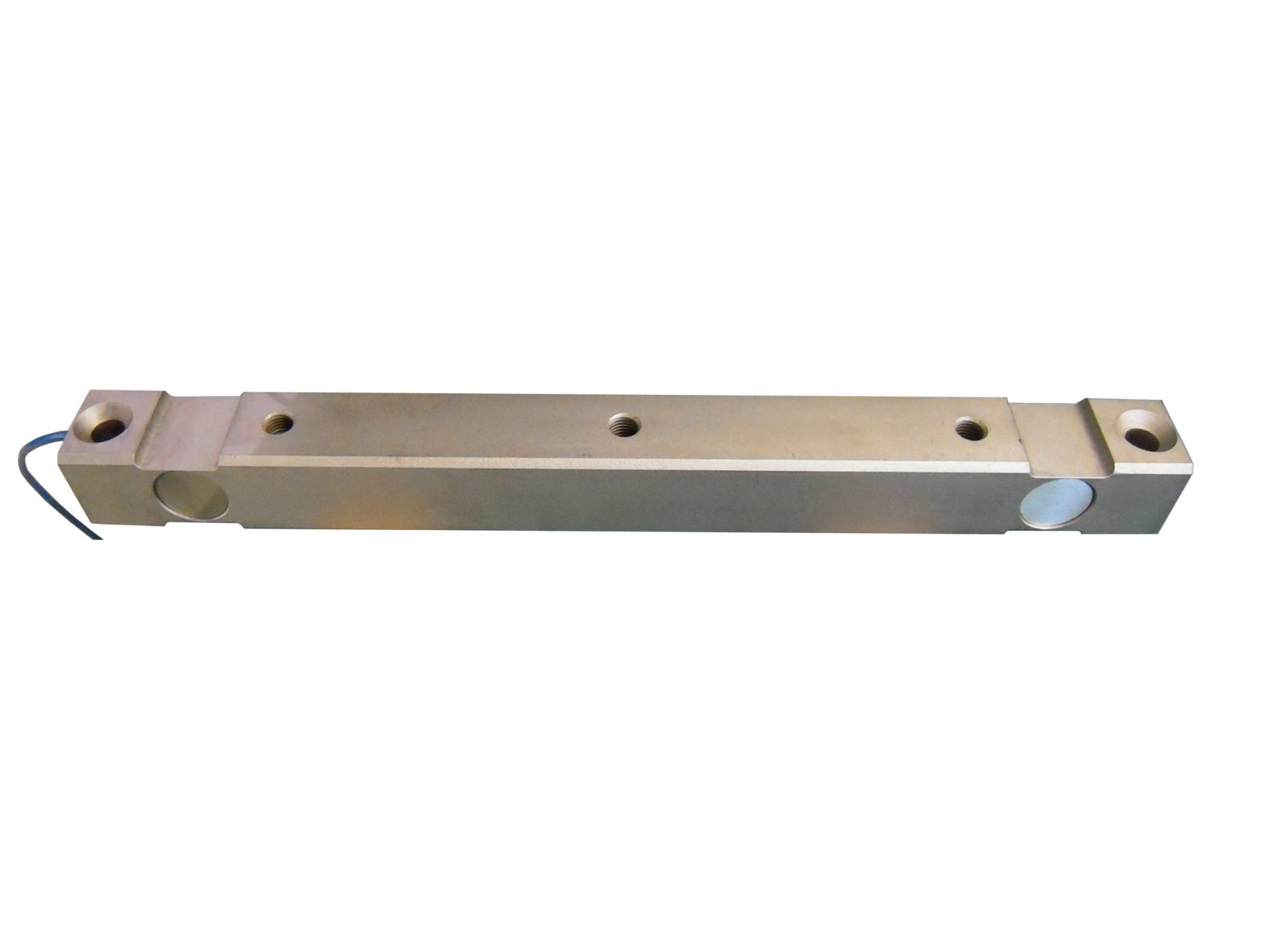

Support local manufacture with Massload’s rugged industrial grade Axle Pad Scale ML-1100 double-end load cell model in 25,000 lbs and 50,000 lbs capacity. Made with the highest quality materials and fully manufactured and calibrated in-house through our VCAP certified Quality Management System. Common applications include on-farm Super B-Train truck weighing, industrial truck weighing, truck trailer loading and boat building.

Highlights

  • High quality Canadian-made load cell transducer manufactured in Canada’s only VCAP (Verified Conformity Assessment Program) certified load cell manufacturing facility
  • Super-duty precision double-beam load cell transducer for use in rugged, industrial, non legal-for-trade applications
  • Used in rigid mount truck scale applications such as Massload truck axle pad scales, truck trailer scales, weigh-in-motion scales, and on-board weighing
  • Center loaded
  • 4340 Alloy Steel
  • 2 year warranty

This load cell transducer is designed for rigid mount and very rugged applications. A key feature of this load cell is that the bolt holes are located at the bottom of the load cell which allows it to be mounted from a base beneath the load cell. This makes it an ideal sensor for onboard weighing and any other situation where dynamic loads may be applied. Because of this design, it is the standard load cell for Massload’s truck axle pad scales and weigh-in-motion scales.

The 1100 Double-Ended Shear Beam Load Cell Transducer is purpose-built for rugged and demanding industrial applications, where precision, durability, and resilience are critical.

This distinctive characteristic makes it an optimal choice for onboard weighing systems, offering precise measurements even under dynamic load conditions.

Capacities (pounds)

25,000 lbs and 50,000 lbs load cell capacities

Safe Overload

150% full scale safe overload

Ultimate Overload

300% full scale ultimate overload

Full Scale Output

2mV/V  +/- 0.25% FS

Maximum Excitation

15 volts DC

Operating Temp

-40°C to +80°C

Compensated Temp

-10°C to +40°C

Sealing Standard

IP-67 protected against high pressure jets of water

Non Linearity

25K AXL +/-0.05% FS
25K WIM +/-0.1% FS
50K AXL +/-0.5% FS

Material

4140 / 4340 High Strength Alloy Steel

Protective Coating

Electro-less nickel – industrial high phosphorous, corrosion and chip resistant

Bridge Resistance

700 Ohm
