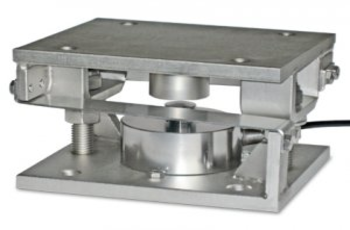

CBL TANK HOPPER LOAD CELL

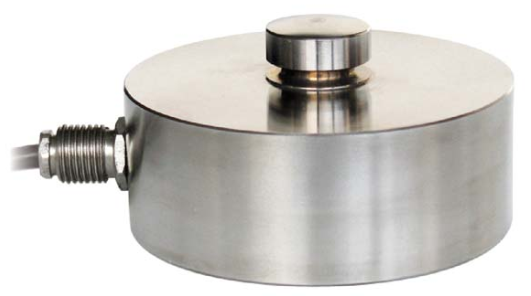

The versatile low profile Laumas CBL compression load cell is ideal for tank, hopper and vessel weighing.
Highlights
- Precision single-point button style load cell for non legal-for-trade applications
- Point loaded with V10000 family of mounting kits
- High quality Italian-made load cell
- Very low profile is ideal for tank and silo weighing
- Capacities 250kg to 100,000kg
- Combined error 0.03% FS
- 17-4PH Stainless Steel
- Cable length 5m (to 10,000kg); 10m (to 100,000kg)
- Protection IP68
- 2 year warranty
- OIML certified – for OIML legal-for-trade applications (not in Canada/USA)
- See Documents – Brochure for detailed specifications
The versatile low profile Laumas CBL compression load cell is ideal for tank, hopper and vessel weighing.
| Capacities (kg) | 250 to 100,000 |
|---|---|
| Safe Overload | 150% full scale safe overload |
| Ultimate Overload | 300% full scale ultimate overload |
| Full Scale Output | 2 mV/V +/- 0.1% FS |
| Maximum Excitation | 15 volts DC |
| Operating Temp | -20°C to +70°C |
| Compensated Temp | -10°C to +50°C |
| Sealing Standard | IP-68 |
| Max Combined Error | +/- 0.03% full scale |
| Material | 17-4PH Stainless Steel |
| Bridge Resistance | 700 Ohm |
Please click on the following links to download or view additional information:
- Brochure CBL-load-cell-brochure.pdf
- Brochure V10000-275_EN-brochure
