2000 Double-Ended Shear Beam Load Cell Transducer
Support local manufacture with Massload’s rugged industrial grade ML-2000 double-end load cell model in 150,000 lbs capacity. Made with the highest quality materials and fully manufactured and calibrated in-house through our VCAP certified Quality Management System. Common applications include oilfield proppant tank weighing and mining vehicle axle scales.
Highlights
- High quality Canadian-made load cell transducer manufactured in Canada’s only VCAP (Verified Conformity Assessment Program) certified load cell manufacturing facility
- Super heavy duty double-beam load cell for rigid mounted tanks / silos and platforms in rugged weighing applications for oil, gas and mining such as fracking proppant silos and large capacity weigh platforms

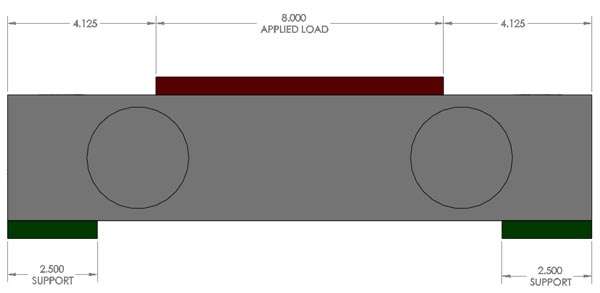

- Center loaded
- 150,000 lbs capacity
- 4340 Alloy Steel
- 2 year warranty
This super heavy duty high quality 150,000 lbs double-ended shear beam load cell transducer is designed for rugged batch weighing applications in oil and gas and mining that require rigid mounted tanks / silos such as fracking proppant silos and large capacity weigh platforms. The high capacity is perfect for large scale projects or in applications with dynamic or shock loading.
The 2000 Double-Ended Shear Beam load cell stands as a pinnacle of strength and reliability, tailored for rugged demands.
Its superior construction, coupled with an impressive 150K capacity and center-loading precision, ensures consistent and accurate batch weighing in tough industrial environments.
| Capacities (pounds) | 150,000 lbs |
|---|---|
| Safe Overload | 150% full scale safe overload |
| Ultimate Overload | 300% full scale ultimate overload |
| Full Scale Output | 3 mV/V |
| Maximum Excitation | 15 volts DC |
| Operating Temp | -40°C to +80°C |
| Compensated Temp | -10°C to +40°C |
| Sealing Standard | IP-67 protected against high pressure jets of water |
| Non Linearity | +/- 0.5% full scale |
| Material | 4140 / 4340 High Strength Alloy Steel |
| Protective Coating | Electro-less nickel – industrial high phosphorous, corrosion and chip resistant |
| Bridge Resistance | 700 Ohm |
