500 Double-Ended Shear Beam Load Cell Transducer

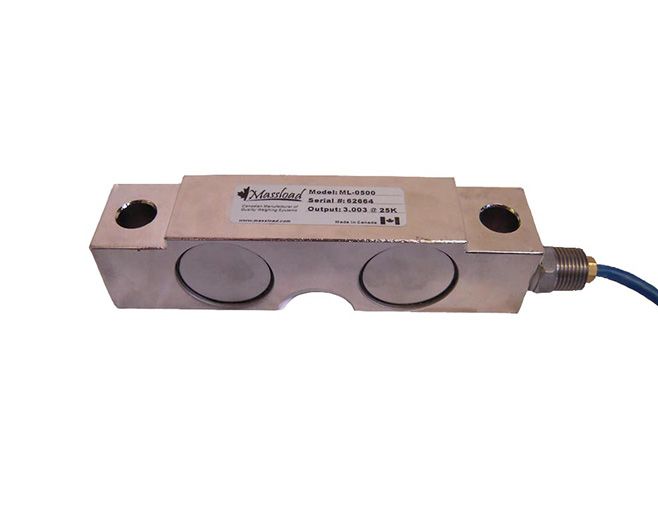

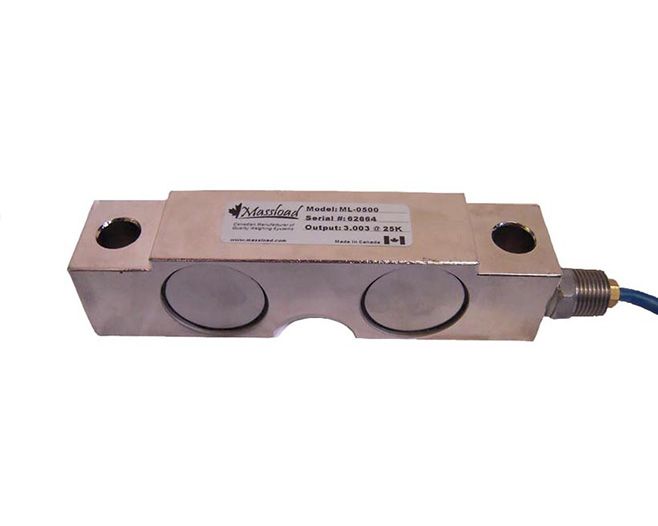

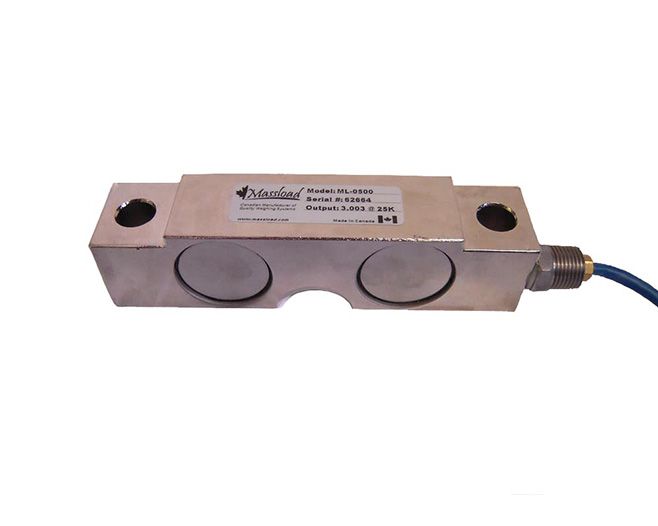

Massload’s ML-500 double-end tank and hopper load cell model ranges from 25,000 lbs to 125,000 lbs, made with the highest quality materials and fully manufactured and calibrated in-house through our VCAP certified Quality Management System. We also supply a full range of equivalent imported load cells.
Highlights
- High quality Canadian-made load cell transducer manufactured in Canada’s only VCAP (Verified Conformity Assessment Program) certified load cell manufacturing facility
- Precision double-beam load cell transducer for use in non legal-for-trade applications
- 4340 Alloy Steel or 17-4PH Stainless Steel
- Used in tank and hopper batch weighing scales
- Center point loaded via weigh module system (see options)
- 4 year warranty
- Optional imported NTEP approved load cells for use in legal-for-trade applications with 1 year warranty
| Capacity (Pounds) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
|---|---|---|---|---|---|---|---|---|
| 25,000 | 165 | 197 | 127 | 35 | 43 | 43 | 49 | 18 |
| 50,000 | 216 | 260 | 162 | 49 | 62 | 67 | 75 | 27 |
| 60,000 | 216 | 260 | 162 | 49 | 62 | 67 | 75 | 27 |
| 75,000 | 216 | 260 | 162 | 49 | 62 | 67 | 75 | 27 |
| 100,000 | 324 | 387 | 228 | 80 | 74 | 87 | 98 | 40 |
| 125,000 | 324 | 387 | 228 | 80 | 74 | 87 | 98 | 40 |
This double ended shear beam load cell is designed for center loading and is ideally suited for large capacity weighing. Common applications includes tank weighing, truck and railway scales. This precision load cell can meet legal-for-trade requirements.
The 500 Double Shear Beam Load Cell Transducer is a testament to precision engineering, offering accuracy and reliability for a wide range of industrial settings.
With its robust construction and superior performance, this load cell includes legal and non-legal-for-trade applications.
| Capacities (pounds) | 25,000 lbs to 125,000 lbs load cell capacities |
|---|---|
| Safe Overload | 150% full scale safe overload |
| Ultimate Overload | 300% full scale ultimate overload |
| Full Scale Output | 3.0 mV/V +/- 0.25% FS |
| Maximum Excitation | 15 volts DC |
| Operating Temp | -40°C to +80°C |
| Compensated Temp | -10°C to +40°C |
| Sealing Standard | IP-67 protected against high pressure jets of water |
| Non Linearity | +/- 0.05% to +/- 0.1% full scale |
| Material | 17-4PH Stainless Steel (standard), or |
| Protective Coating | Electro-less nickel – industrial high phosphorous, corrosion and chip resistant |
| Bridge Resistance | 700 Ohm |
Please click on the following links to download or view additional information:
- Brochure ML500 Double-Ended Beam Load Cell
