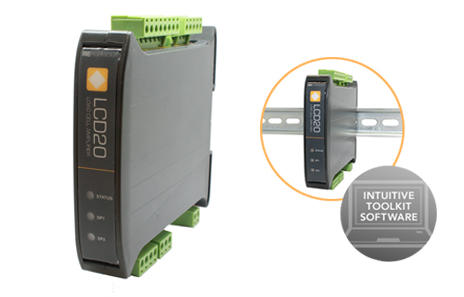

LCD20 DIN RAIL 4-20MA LOAD CELL AMPLIFIER
Mantracourt LCD20 is a high quality DIN rail mounted load cell amplifier with 4-20mA and 0-10V output for typical PLC connections. 10 point linearization and 2 relay outputs provides for extreme system accuracy and adaptability
Highlights
- Intelligent, compact, stackable microprocessor based load cell amplifier for smarter automation and process control
- Fully isolated standard analogue outputs 4-20mA and 0-10V
- Full digital setup & easy programming via USB connection to a PC using intuitive toolkit software
- Increased functionality with 2 single pole relays & digital inputs
- 10 point linearization, providing superior accuracy
- 6 wire load cell connection to compensate for barrier and cable losses
- Lockable features prevents loss of device settings through user misuse
- Configuration can be save and restored for security of setup
Mantracourt LCD20 is an intelligent DIN rail mounted load cell amplifier with 4-20mA and 0-10V output for typical PLC connections. 10 point linearization and 2 relay outputs provides for extreme system accuracy and adaptability
The LCD20 intelligent strain gauge bridge amplifier is a compact, stackable microprocessor based unit specifically designed to control and monitor process applications. Flexible connection to most load cells, pressure or strain gauges over a wide range of sensitivities.
The load cell amplifier (LCD20) provides isolated current 4-20mA and voltage 0-10V analogue outputs and two digital inputs. Two set point relays can be configured to set thresholds such as net, gross, peak and valley. Powered from a wide ranging DC supply, the DIN rail amplifier is supplied with 2 part screw connectors for ease of installation.
Suitable for strain gauges and other ratio-metric sensors and will support 6 wire input to compensate for barrier and cable losses. Factory calibrated to mV/V and supporting 10 point user calibration to desired engineering units. Configuration options via handheld programmer or PC Toolkit software.
The analogue outputs and relays interface to existing acquisition and control systems making this unit an ideal partner for any integrated instrumentation system.
The LCD20 load cell amplifier can be used in conjunction with our LCI load cell failure alarm, which is designed to continuously monitor the condition of individual load cells and activate an alarm when faults in the system are detected, therefore providing increased safety and cost savings onsite for all weighing systems.
| Capacities
(pounds) |
10K lb to 250K lb tension scales (standard models);
custom capacity tension scales available |
| Accuracy | Tension load accurate to 0.1% FS with multi-point calibration |
| Safe Overload | 200% full scale safe overload |
| Ultimate Overload | 400% full scale ultimate overload |
| Full Scale Ouput | 2 mV/V nominal |
| Maximum Excitation | 10 volts DC |
| Operating Temp | -40°C to +80°C |
| Compensated Temp | -10°C to +40°C |
| Sealing Standard | IP-67 protected from dust and high pressure jets of water |
| Material | Nickel plated high strength alloy steel |
| Bridge Resistance | 350 Ohm |
Please click on the following links to download or view additional information:
