TLB DIN RAIL OIML 4-20MA ANALOGUE LOAD CELL WEIGHT TRANSMITTER

IMAGES

Laumas TLB and TLB4 is a high quality DIN rail mounted and OIML approved amplifier with 4-20mA, 0-10V, 0-5V, +/-10V, +/- 5V outputs for legal-for-trade PLC applications. 6-digit red LED display, 3 output relays and single and 4-channel configurations provide for excellent adaptability.

Highlights

  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
  • RS485 port (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 3 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
  • Back panel mounting on Omega/DIN rail
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

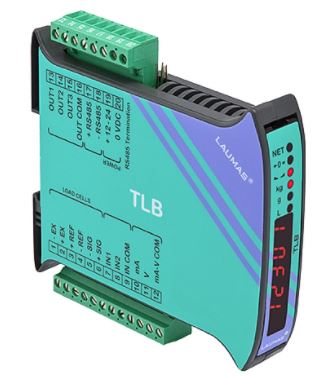

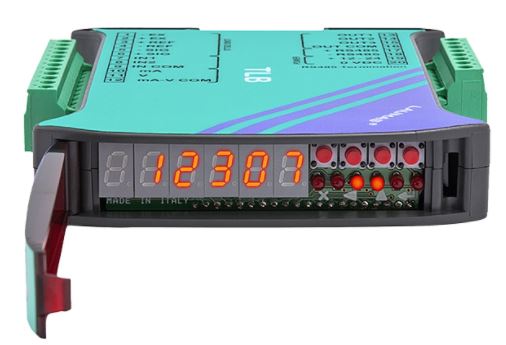

Laumas TLB DIN Rail 4-20mA analogue weight transmitter/indicator comes with six-digit red LED display (8 mm height). Six indicator led. Four buttons for the system calibration. Space saving compact design. Dimensions: 25 x 115 x 120 mm.

Introducing the Laumas TLB DIN Rail 4-20mA Analog Weight Transmitter/Indicator – a cutting-edge solution for precise weight measurement and monitoring.

This advanced device combines innovative technology with a compact, space-saving design to meet various industrial weighing needs with unparalleled accuracy and efficiency.

Please click on the following links to download or view additional information:
