WL-T24-AO1 WIRELESS 4-20MA OUTPUT FOR PLC

IMAGES

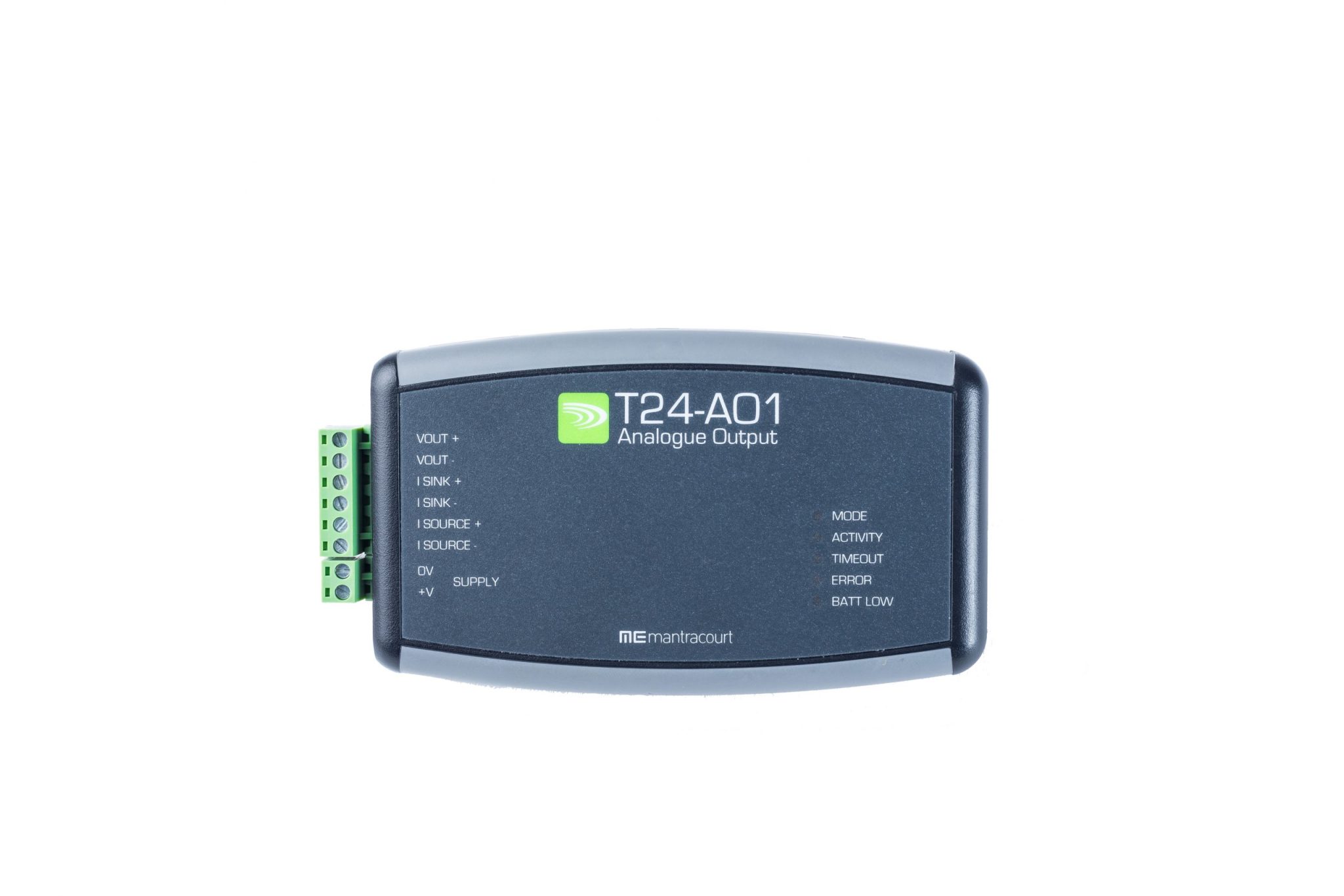

Mantracourt T24-AO1 wireless receiver with analogue output connects with the T24-ACM wireless load cell transmiter to provide 0-20mA, 4-20mA, 0-10V, 0-5V, +/-10V +/-5V output options to the PLC controller.

Highlights

  • Provides an analogue output from a T24 wireless transmitter
  • Configurable analog outputs of 0-10 V, 0-5 V, 4-20 mA, 0-20 mA, ±10 V, ±5 V
  • Wireless range of up to 800 m (2,600 ft) for the T24-AO1i industrial version & up to 100 m (330 ft) for the T24-AO1 desktop version
  • Update rate of up to 2000 per second
  • Simple wireless configuration and calibration
  • Desktop and bulkhead mounting enclosure options provide simple 2 part screw terminal connections

The T24-AO1 wireless analogue output converts data from a T24 wireless transmitter module into an analogue output to provide wireless connection to the PLC.

The WL-T24-AO1 Wireless 4-20mA Output for PLC serves as an integral part of the T24 modular telemetry system, allowing seamless conversion of T24 transmitter module data into various analog outputs.

It can provide a choice of analogue outputs including: 0-10 V, 4-20 mA, 0-20 mA, ±10 V, ±5 V.

As part of the T24 modular telemetry system, data from any of the T24 range of transmitters can be used. The data sent by T24 transmitter modules can be utilised by multiple receivers such as displays, handheld readers, analogue outputs, relay modules and computer interfaces.

The T24 Toolkit offers a fast and simple way to configure the analogue output
scaled from any engineering unit input.

A choice of a desktop enclosure or an industrial IP67 sealed enclosure allows selection
of a module to suit your individual application.

See Documents and data Sheet for detailed specifications

Capacities

(pounds)

10K lb to 250K lb tension scales (standard models);

custom capacity tension scales available

Accuracy Tension load accurate to 0.1% FS with multi-point calibration
Safe Overload 200% full scale safe overload
Ultimate Overload 400% full scale ultimate overload
Full Scale Ouput 2 mV/V nominal
Maximum Excitation 10 volts DC
Operating Temp -40°C to +80°C
Compensated Temp -10°C to +40°C
Sealing Standard IP-67 protected from dust and high pressure jets of water
Material Nickel plated high strength alloy steel
Bridge Resistance 350 Ohm
