Ultraslim Wheel Load Scale
Massload’s rugged in-ground slow speed weigh-in-motion vehicle scales provide reliable vehicle traffic data capture, collection and reporting
Highlights
- Permanent, dynamic weighing process
- Obtain truck and vehicle weight quickly
- Truck weight accurate to 3% GVW, 95% CI
- Slow speed applications (less than 16 km/hr)
- Exceeds ASTM IV guidelines for slow speed WIM
- Reliable scale system limited maintenance
- Easy to Use Feature rich Weigh-in-Motion Software (WIMv5) includes axle weight, axle group weight, GVW, speed, overweight indication, automatic vehicle classification
- WIMv5 built on Windows .NET platform for Windows 10 x64 bits
- 7 year warranty on frame, 2 year for load cells
Each weigh pad comes with two attachable ramps for static weighing. Should dynamic weighing be required, we recommend extra long weigh pads (1 meter) and leveling track. See portable weigh-in-motion for more information on using Ultraslim weigh scales to obtain dynamic weight.
These weigh pads are not legal-for-trade in obtaining static weight or dynamic weight.

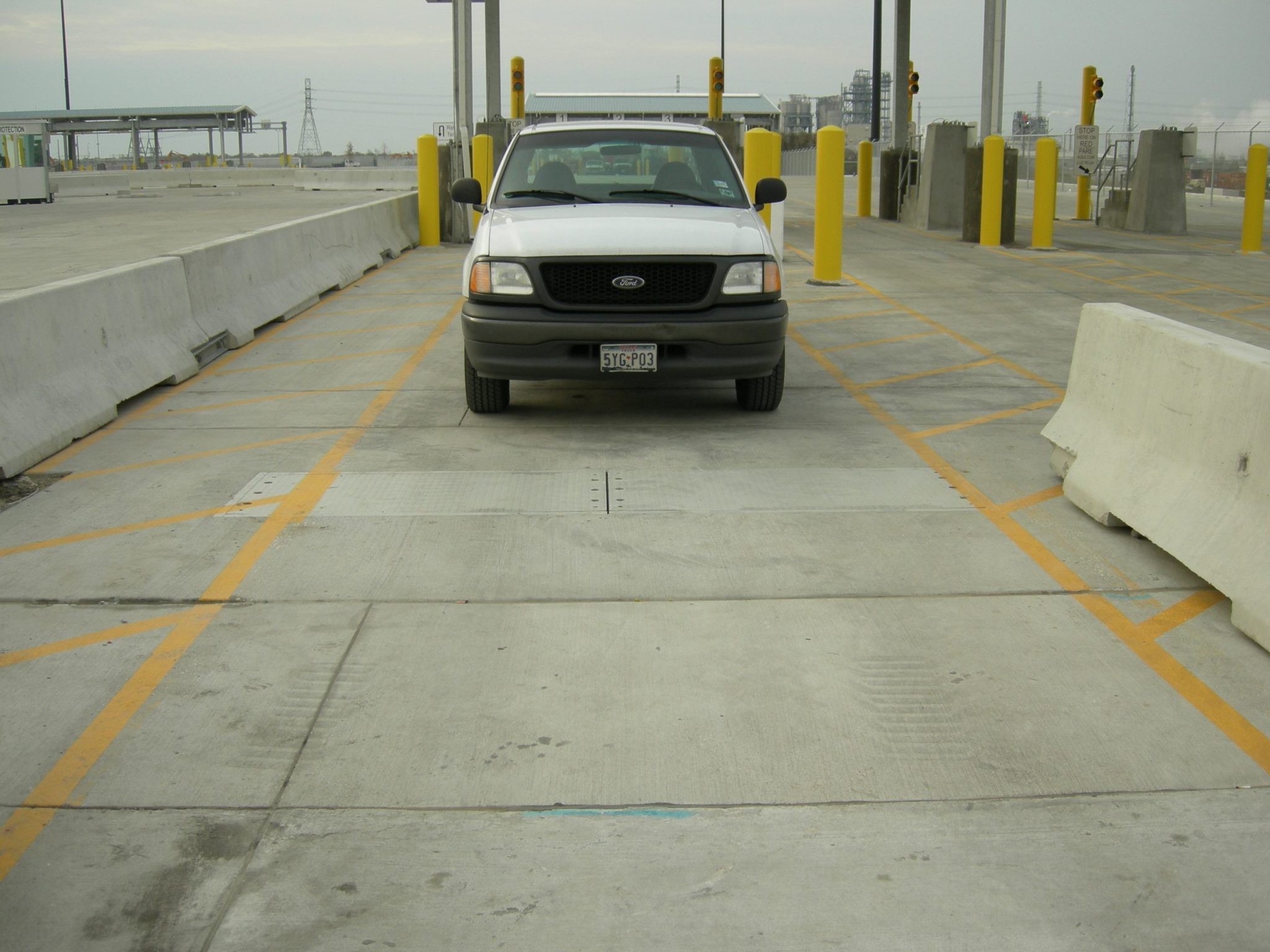

Installation of Massload’s permanent weight in motion scale is simple. An approximate hole must be cut through the surface of the roadway where the scale will be placed. Scale frames are then bolted together with braces which will later be used to keep the scale flush with surrounding concrete.
Proper drainage is provided to the cutout and the scale frames are then suspended over the cutout. The braces ensure the permanent pads are installed flush with the surrounding concrete to ensure a level approach to the scale and a level departure from the scale.
The first pour creates the bottom of the scale pit. After the first pour has had time to cure, the second pour fills the outer portion of the scale cutout. Load cells, cables, sum boxes, LCIB computer interface, and WIM software are now ready to be installed to finish the scale installation.
The permanent in-ground WIM system comprises:
- 1 Permanent WIM pad (for shipping purposes, separated into 2 decks)
- 1 Summation box for the WIM load cells
- 1 Cable for summation box to LCIB computer interface in the scale house
- 1 LCIB Computer Interface Device
- USB cable to connect LCIB to computer
- 1 Weight In Motion (WIM) software package
- Static and dynamic weighing mode
- Automated vehicle classification with configurable classifications
- Overweight indication based on vehicle classification
- Optional vehicle detection loop to start and end vehicle weighment
- Dual traffic light support
- Inductive loop support
- Configurable report generation
- Configurable main screen – show only relevant data
- Post weighing screen allows you to fill in additional information
- Program security on settings and user logins to protect weight data
- Convertable language library
| Rated Capacity (pounds) | Dynamic weighing: 50,000 lbs per axle weight |
|---|---|
| Accuracy | Dynamic weighing accurate to 3% of gross vehicle weight, 95% CI |
| Overload Capacity | 150% full scale safe overload |
| Temperature Range | -40ºC to +80ºC (operating) |
| Graduation | 50 lbs standard |
| Weight | 670 lbs / deck (2 decks per system) |
| Material | High strength steel |
| Fatigue Limit | Infinite cycles (axle loads) per day |
| Ground Requirements | Accuracy is significantly affected by the scale foundation. This scale system must have a level and flat concrete approach and departure that is level within 1/16″ for the most accurate vehicle weight |
| Dimensions | 144″ x 30″ x 6″ |
| Sealing Standard | IP-66: totally protected from dust; protected from strong jets of water |
| Power | This dynamic scale is powered by the LCIB, which is powered from the USB port of the computer (draws < 500mA) |
Please click on the following links to download or view additional information:
- Brochure Permanent Weight In Motion
