Name: Massload Trailer Loading Dock Scales
Brand: Massload
SKU: ML-TRAILER-DOCK-SCALE
Availability: PreOrder

IMAGES

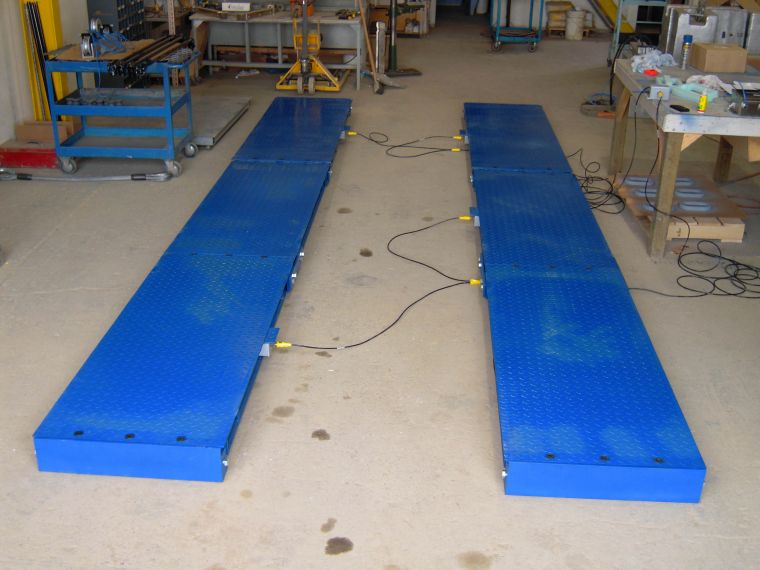

Truck axle trailer weighing system on concrete floor

Massload’s range of configurable axle pad scales provide heavy duty, reliable and easy to use solutions for any truck trailer loading setup. These scales offer a large weighing surface and can accommodate dual axle truck weighing and tri-axle truck trailer weighing.

Highlights

Proven Durability Under the Toughest Conditions
Fully Made in Canada
84″ x 30″ axle pads for dual axle truck weighing
144″ x 30″ axle pads for tri-axle truck weighing
168″ x 30″ axle pads for dual and tri-axle truck weighing
Axle weight accurate to within 0.25% FS
Calibrated with fully traceable certified weights
Axle scales can be used on compacted yard gravel
6″ low profile for ease of use
2″ clearance under platforms
Forklift portable for use in multiple locations
10 year warranty on axle scale platform
5 year warranty on our Made in Canada truck scale load cells
2 year warranty on electronics, printer & cables

ADD TO QUOTE

These axle pads have a very large weighing surface and low profile making them our easiest method of determining truck axle weight. These axle pads are typically sold in pairs but can also be sold in multiples to get complete trailer or truck weight in one weighment. Truck axle scales can be used with ramps for above ground installations or flush with concrete for a pit-installed permanent application. Above ground installations are forklift portable and should be used with quick disconnect cable (see options).

This system it is not for use in legal for trade applications.

Typically available in pairs, these axle pad scales can also be purchased in multiples to facilitate comprehensive trailer or truck weight measurements in a single weighment.

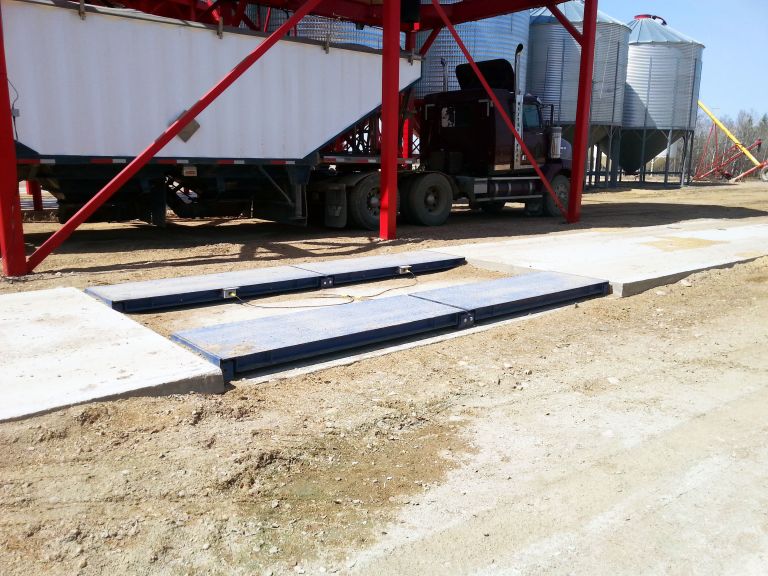

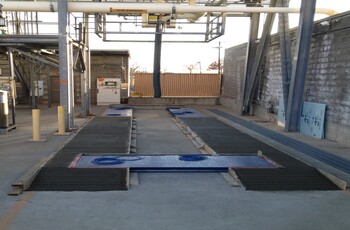

Versatile in their application, truck axle scales can be used in two ways: with ramps for above-ground installations or flush with concrete for a pit-installed permanent setup.

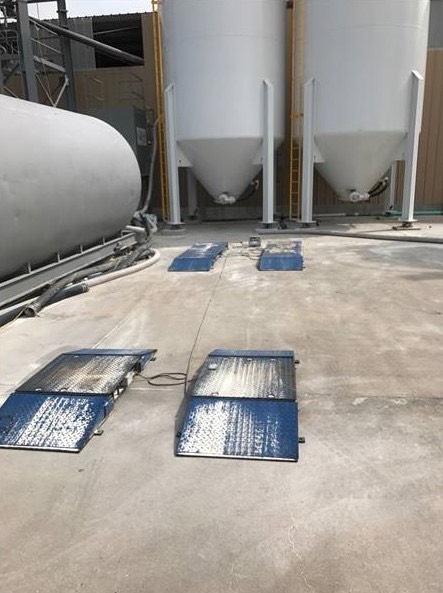

For above-ground installations, they are forklift portable and recommended to be used with a quick disconnect cable.

Please note: This system is not intended for use in legal-for-trade applications.

Specifications
Documents & Drawings

Rated Capacity (pounds)	84″ axle scale: 30,000 lbs/pad (60,000 lbs/axle grouping) 144″ axle scale: 40,000 lbs/pad (80,000 lbs/axle grouping) 168″ axle scale: 30,000 lbs/pad (80,000 lbs/axle grouping)
Load Cells	ML 1100-25K (Output: 2mV/V)
Accuracy	Individual axle weight tested to accuracy of 0.25% FS nominal
Overload Capacity	150% full scale safe overload 300% full scale ultimate overload
Temperature Range	-40ºC to +80ºC (operating) -10ºC to +40ºC (compensated)
Graduation	20 lbs (30,000 lbs and 40,000 lbs capacity). Calibration in kg is available.
Material	Load Cells: Made by Massload in Canada with quality alloy steel from USA or Europe. Platforms: Made by Massload in Canada from heavy duty high strength Canadian steel. Instrumentation: Western Scale, made in Canada Custom Cabling: Made in Canada
Fatigue Limit	Infinite cycles per day (wheel loads)
Ground Requirements	The ground must be flat and level, fully supporting loads and with proper drainage Suitable for compacted yard gravel, concrete or pavement
Dimensions	Platform Weighing surface: 84″ x 30″ x 6″ – for Tandem 144″ x 30″ x 6″ – for Tri-axle 168″ x 30″ x 6″ – for extra wide Tri-axle
Sealing Standard	IP-66: totally protected from dust; protected from strong jets of water
Power	Axle scales are powered by digital load cell indicator

Please click on the following links to download or view additional information:

Brochure Massload Trailer Weigh Solutions with Axle Pad Scale

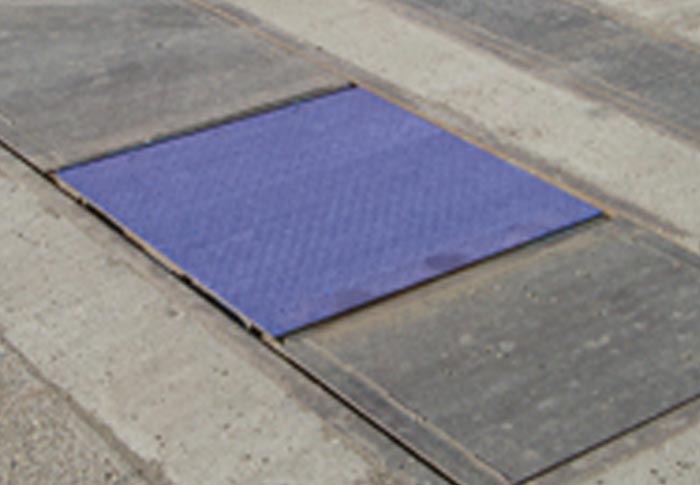

Brochure 30 x 30 Heavy Duty Pad
Tech Note 30" & 84" Wiring & box options
Tech Note 144 Wiring & box options
Tech Note Installation alignment for axle pads
Tech Note Axle weighing and errors
Tech Note Stop Light Axle Adding
