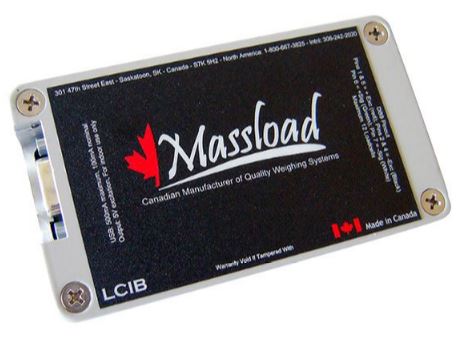

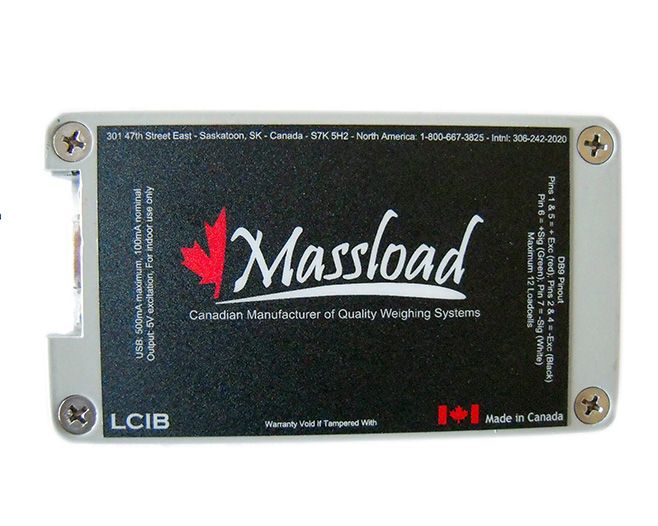

LCIB LOAD CELL USB INTERFACE

IMAGES

Massload’s LCIB offers high speed sampling of the load cell analogue output with a 2000 samples per second data stream via the plug and play USB 32bit interface, while the the Scale Scope software supports data capture and analysis.

Highlights

  • Connects to Computer via USB interface
  • Turns your computer as the weight indicator
  • Store and manage your data on a PC
  • Processes up to 2000 samples per second
  • Use for both static and dynamic weighing processes
  • Calibration data is stored on LCIB itself
  • Save unlimited calibration points to achieve extreme accuracy
  • Store multiple calibration data sets for different scale configurations and switch easily between load cells
  • LCIB comes with printed manual, software disk, and USB cable

Massload’s LCIB offers high speed sampling of the load cell analogue output with a 2000 samples per second data stream via the plug and play USB 32bit interface, while the the Scale Scope software supports data capture and analysis.

Massload’s LCIB computer scale interface allows you to use your computer as the weight indicator and store and manage your data on a PC. With the ability to process up to 2000 samples per second, this device works well for both static and dynamic weighing processes.

The LCIB stores calibration data on the device itself (versus the computer). It can save unlimited calibration points, you can store calibration data for a number of load cells and switch easily between load cells. In addition, you can save calibration sets to improve scale accuracy. Each LCIB comes with printed manual, software disk, and USB cable.

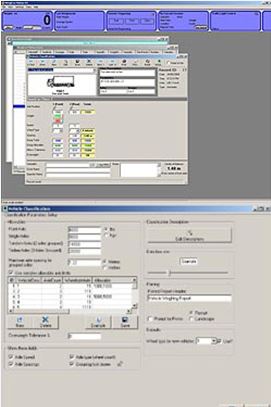

WEIGHING SOFTWARE
Massload has developed two weighing software packages (see options) that vary based on the weighing application. Each software package is unique but both have the following common features:
Real time weight display
Adjustable graduation size
Export graph data to MS excel or text file
Save and print weight data
Easy to use calibration utility and library
Scoreboard support via RS-232 port

Models 1 mV/V, 2mV/V, and 3 mV/V
Connection Type USB
Power Source Draws power from the computer via USB connection
